10 Volt Zener Diode SOT-23 BZX84C / Silicon Semiconductor BZX84-C10

  • 10 Volt Zener Diode SOT-23 BZX84C / Silicon Semiconductor BZX84-C10
  • 10 Volt Zener Diode SOT-23 BZX84C / Silicon Semiconductor BZX84-C10
Place of Origin Malaysia / CHINA
Brand Name NXP/LRC/FSC/ON/MCC/DIODE/VISHAY/Thinkchip
Model Number BZX84C
Minimum Order Quantity 100PCS
Price negotiable

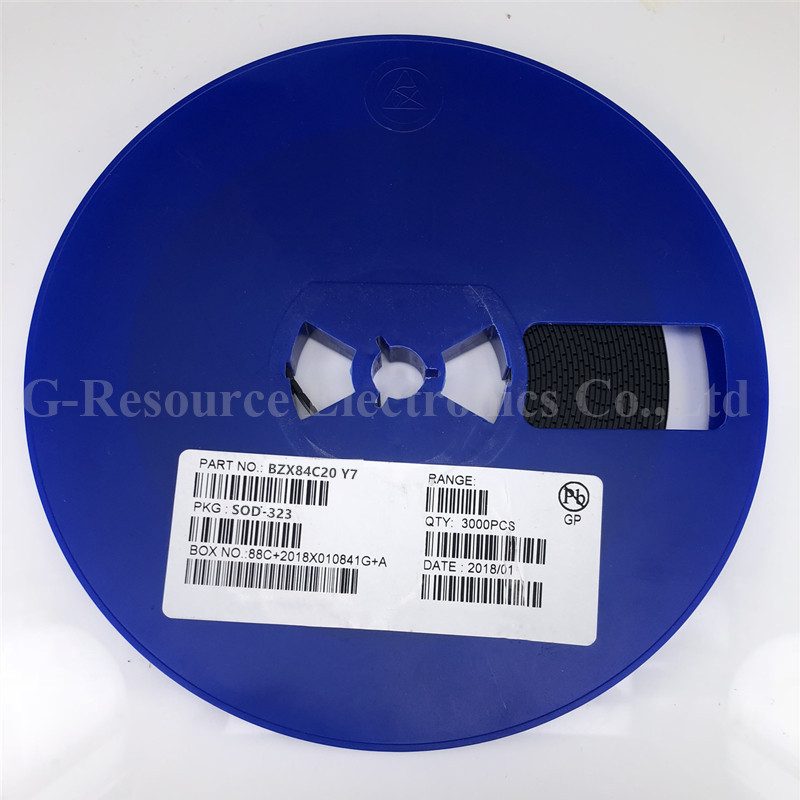

Packaging Details Tape & Reel (TR) / Cut Tape (CT)
Delivery Time 1-2 working days
Payment Terms T/T, Western Union,paypal,MoneyGram
Supply Ability 9,900,000 pcs

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package SOT-23 Nom(V) 10V
Tolerance ±5% Power - Max 350mW
ZZK(Ω) 150 ZZT(Ω) 20
Part Status Active TYPE BZX84C
Highlight

smd zener diode

,

high speed zener diode
Leave a Message
Product Description

BZX84C10V   BZX84-C10

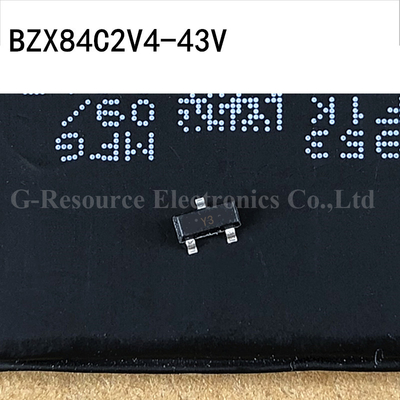

BZX84C2V3-43 smd zener diode SOT-23 BZX84C high power zener diode 350mW

Zener Diode is a silicon semiconductor device that permits current to flow in either a forward or reverse direction. The diode consists of a special, heavily doped p-n junction, designed to conduct in the reverse direction when a certain specified voltage is reached.

The Zener diode has a well-defined reverse-breakdown voltage, at which it starts conducting current, and continues operating continuously in the reverse-bias mode without getting damaged. Additionally, the voltage drop across the diode remains constant over a wide range of voltages, a feature that makes Zener diodes suitable for use in voltage regulation.

Zener diode operation

The Zener diode operates just like the normal diode when in the forward-bias mode, and has a turn-on voltage of between 0.3 and 0.7 V. However, when connected in the reverse mode, which is usual in most of its applications, a small leakage current may flow. As the reverse voltage increases to the predetermined breakdown voltage (Vz), a current starts flowing through the diode. The current increases to a maximum, which is determined by the series resistor, after which it stabilizes and remains constant over a wide range of applied voltage.

BZX84C10 SOT-23 10 9.4 10.6 20 150 0.2 350
BZX84C11 SOT-23 11 10.4 11.6 20 150 0.1 350
BZX84C12 SOT-23 12 11.4 12.7 25 150 0.1 350
BZX84C13 SOT-23 13 12.4 14.1 30 170 0.1 350
BZX84C15 SOT-23 15 13.8 15.6 30 200 0.1 350
BZX84C16 SOT-23 16 15.3 17.1 40 200 0.1 350
BZX84C18 SOT-23 18 16.8 19.1 45 225 0.1 350
BZX84C20 SOT-23 20 18.8 21.2 55 225 0.1 350
BZX84C22 SOT-23 22 20.8 23.3 55 250 0.1 350
BZX84C24 SOT-23 24 22.8 25.6 70 250 0.1 350
BZX84C27 SOT-23 27 25.1 28.9 80 300 0.1 350
BZX84C2V4 SOT-23 2.4 2.2 2.6 100 600 50 350
BZX84C2V7 SOT-23 2.7 2.5 2.9 100 600 20 350
BZX84C30 SOT-23 30 28 32 80 300 0.1 350
BZX84C33 SOT-23 33 31 35 80 325 0.1 350
BZX84C36 SOT-23 36 34 38 90 350 0.1 350
BZX84C39 SOT-23 39 38 41 130 350 0.1 350
BZX84C3V0 SOT-23 3 2.8 3.2 95 600 10 350
BZX84C3V3 SOT-23 3.3 3.1 3.5 95 600 5 350
BZX84C3V6 SOT-23 3.6 3.4 3.8 90 600 5 350
BZX84C3V9 SOT-23 3.9 3.7 4.1 90 600 3 350
BZX84C4V3 SOT-23 4.3 4 4.6 90 600 3 350
BZX84C4V7 SOT-23 4.7 4.4 5 80 500 3 350
BZX84C5V1 SOT-23 5.1 4.8 5.4 60 480 2 350
BZX84C5V6 SOT-23 5.6 5.2 6 40 400 1 350
BZX84C6V2 SOT-23 6.2 5.8 6.6 10 150 3 350
BZX84C6V8 SOT-23 6.8 6.4 7.2 15 80 2 350
BZX84C7V5 SOT-23 7.5 7 7.9 15 80 1 350
BZX84C8V2 SOT-23 8.2 7.7 8.7 15 80 0.7 350
BZX84C9V1 SOT-23 9.1 8.5 9.6 15 100 0.5 350




Contact us if you need more detail or quotation of these item. info@gr-ele.com
