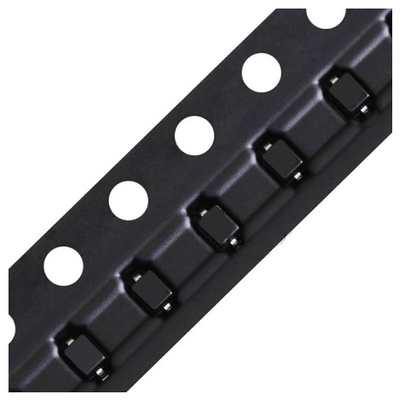

2.7 V Zener Diode SOD-323 / Dioda Zener Smd 300mW ±5% BZX384-C2V7 100 Ohms

  • 2.7 V Zener Diode SOD-323 / Dioda Zener Smd 300mW ±5% BZX384-C2V7 100 Ohms
Place of Origin Malaysia / CHINA
Brand Name NXP/LRC/FSC/ON/MCC/DIODE/VISHAY/Thinkchip
Model Number BZX384-C3V3
Minimum Order Quantity 100PCS
Price negotiable
Packaging Details Tape & Reel (TR) / Cut Tape (CT)
Delivery Time 1-2 working days
Payment Terms T/T, Western Union,paypal,MoneyGram
Supply Ability 9,900,000 pcs

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Part Status Active Voltage - Zener (Nom) (Vz) 2.7V
Tolerance ±5% Power - Max 300mW
Impedance (Max) (Zzt) 100 Ohms Operating Temperature -65°C ~ 150°C
Highlight

silicon semiconductor

,

high speed zener diode
Leave a Message
Product Description

Zener Diode 2.7V 300mW ±5% Surface Mount SOD-323

Zener Diode Basic Operation and Applications



Zener Diode is a silicon semiconductor device that permits current to flow in either a forward or reverse direction. The diode consists of a special, heavily doped p-n junction, designed to conduct in the reverse direction when a certain specified voltage is reached.

The Zener diode has a well-defined reverse-breakdown voltage, at which it starts conducting current, and continues operating continuously in the reverse-bias mode without getting damaged. Additionally, the voltage drop across the diode remains constant over a wide range of voltages, a feature that makes Zener diodes suitable for use in voltage regulation.

Zener diode operation

The Zener diode operates just like the normal diode when in the forward-bias mode, and has a turn-on voltage of between 0.3 and 0.7 V. However, when connected in the reverse mode, which is usual in most of its applications, a small leakage current may flow. As the reverse voltage increases to the predetermined breakdown voltage (Vz), a current starts flowing through the diode. The current increases to a maximum, which is determined by the series resistor, after which it stabilizes and remains constant over a wide range of applied voltage.



BZX384-C2V7/ BZX84C2V7W







FEATURES

  1. Planar Die Construction
  2. 200mW Power Dissipation
  3. Zener Voltages from 2.4V - 39V
  4. Ultra-Small Surface Mount Package Power Dissipation





Base Part Number BZX384C2V7 / BZX84C2V7W
Part Status Active
Voltage - Zener (Nom) (Vz) 2.7V
Tolerance ±5%
Power - Max 300mW
Impedance (Max) (Zzt) 100 Ohms
Current - Reverse Leakage @ Vr 20µA @ 1V
Voltage - Forward (Vf) (Max) @ If 1.1V @ 100mA
Operating Temperature -65°C ~ 150°C
Mounting Type Surface Mount
Package / Case SC-76, SOD-323
Supplier Device Package SOD-323



Service


Contact us if you need more detail or quotation of these item.   info@gr-ele.com
Pls kindly check the below part number of same series.



BZX484-C2V4 - BZV384-C39

BZX84C2V4W-BZX84C39W ZENER DIODE
