Surface Mount SMB Fast Recovery Diode SOD-123FL 1.5A RS15AL RS15BL RS15KL RS15DL RS15GL

  • Surface Mount SMB Fast Recovery Diode SOD-123FL 1.5A RS15AL RS15BL RS15KL RS15DL RS15GL
  • Surface Mount SMB Fast Recovery Diode SOD-123FL 1.5A RS15AL RS15BL RS15KL RS15DL RS15GL
  • Surface Mount SMB Fast Recovery Diode SOD-123FL 1.5A RS15AL RS15BL RS15KL RS15DL RS15GL
Place of Origin CHINA
Brand Name THINKCHIP
Model Number FR2A FR2B FR2D FR2G FR2J FR2K FR2M
Minimum Order Quantity 100PCS
Price negotiable
Packaging Details Tape & Reel (TR) / Cut Tape (CT)
Delivery Time 1-2 WORK DAYS
Payment Terms T/T, Western Union,paypal, MoneyGram
Supply Ability 9,900,000 pcs/weekly

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
TYPE FR2A FR2B FR2D FR2G FR2J FR2K FR2M Package SMB
VRRM(V) 50V IO(A) 2A
IFSM(A) 50A Trr(ns) 150
VF(V) 1.3 IR(uA) 5
Highlight

fast recovery rectifier diode

,

surface mount diode
Leave a Message
Product Description

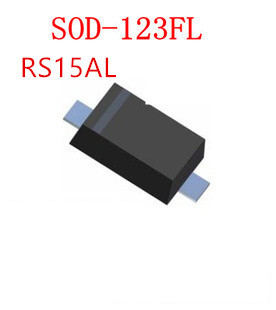

RS15AL RS15BL RS15KL RS15DL RS15GL SMB Fast Recorvery Diode SOD-123FL 1.5A



FEATURES
l Surface Mount device
l Low Reverse voltage leakage current
l Glass passivated junction
l High forward surge current capability
l Low forward voltage drop

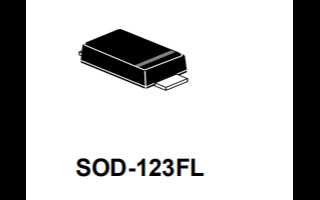

SOD-123FL

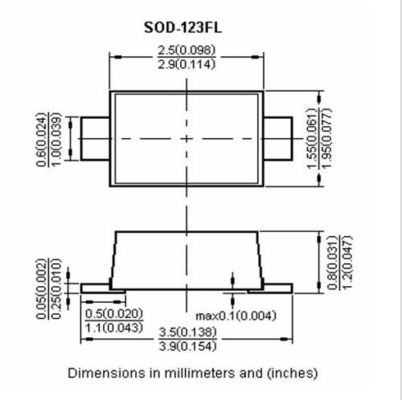

MECHANICAL DATA
l Case: SOD-123FL
l Case Material: Molded Plastic. UL flammability
l Classification Rating: 94V-0
l Moisture Sensitivity: Level 1 per J-STD-020
l Weight: 0.0155 grams (approximate)



other items

Type Package VRRM(V) IO(A) IFSM(A) Trr(ns) VF(V) IR(uA)

RS15AL SOD-123FL 50 1.5 45 150 1.3 5
RS15BL SOD-123FL 100 1.5 45 150 1.3 5
RS15DL SOD-123FL 200 1.5 45 150 1.3 5
RS15GL SOD-123FL 400 1.5 45 150 1.3 5
RS15JL SOD-123FL 600 1.5 45 250 1.3 5
RS15KL SOD-123FL 800 1.5 45 500 1.3 5
RS15ML SOD-123FL 1000 1.5 45 500 1.3 5





Surface Mount SMB Fast Recovery Diode SOD-123FL 1.5A RS15AL RS15BL RS15KL RS15DL RS15GL 0

Surface Mount SMB Fast Recovery Diode SOD-123FL 1.5A RS15AL RS15BL RS15KL RS15DL RS15GL 1
