SMA Diode Fast Recorvery UF1A UF1B UF1D UF1G UF1J UF1K UF1M DO-214AC

  • SMA Diode Fast Recorvery UF1A UF1B UF1D UF1G UF1J UF1K UF1M DO-214AC
  • SMA Diode Fast Recorvery UF1A UF1B UF1D UF1G UF1J UF1K UF1M DO-214AC
  • SMA Diode Fast Recorvery UF1A UF1B UF1D UF1G UF1J UF1K UF1M DO-214AC
  • SMA Diode Fast Recorvery UF1A UF1B UF1D UF1G UF1J UF1K UF1M DO-214AC
Place of Origin CHINA
Brand Name THINKCHIP
Model Number UF1A UF1B UF1D UF1G UF1J UF1K UF1M
Minimum Order Quantity 100PCS
Price negotiable

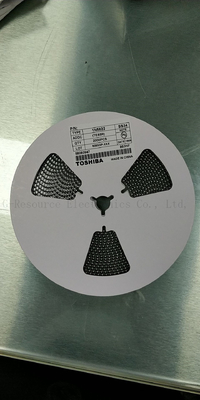

Packaging Details Tape & Reel (TR) / Cut Tape (CT)
Delivery Time 1-2 WORK DAYS
Payment Terms T/T, Western Union,paypal, MoneyGram
Supply Ability 9,900,000 pcs/weekly

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
TYPE UF1A Package SMA
VRRM(V) 50V IFSM(A) 30
Trr(ns) 50S IR(uA) 5
VF(V) 1 IO(A) 1
Highlight

fast recovery rectifier diode

,

surface mount diode
Leave a Message
Product Description

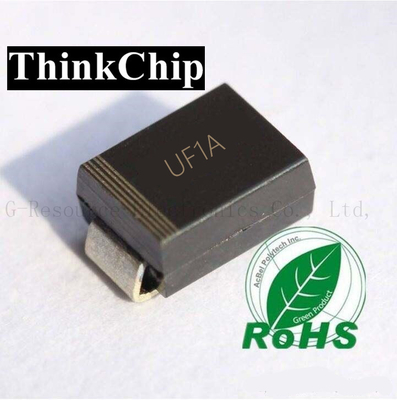

UF1A UF1B UF1D UF1G UF1J UF1K UF1M Fast Recorvery Diode SMA DO-214AC

FEATURES
 Glass Passivated Die Construction
 Super-Fast Recovery Time For High Efficiency
 Low Forward Voltage Drop and High Current Capability
 Ideally Suited for Automated Assembly
 Plastic Material: UL Flammability Classification Rating 94V-0
MECHANICAL DATA

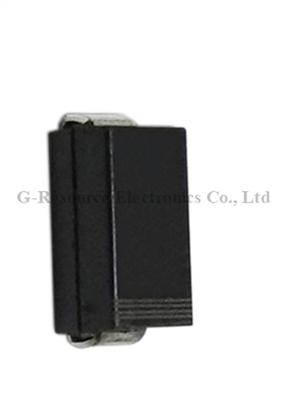

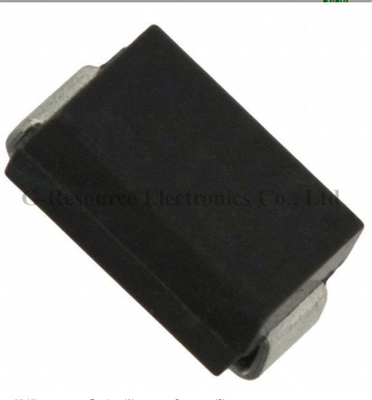

 Case: DO-214AC Molded plastic
 Terminals: Pure tin plated, lead free
 Polarity: Indicated by cathode band
 Weight: 70mg (approx.)



other items



Type Package VRRM(V) IO(A) IFSM(A) Trr(ns) VF(V) IR(uA)



UF1A SMA 50 1 30 50 1 5
UF1B SMA 100 1 30 50 1 5
UF1D SMA 200 1 30 50 1 5
UF1G SMA 400 1 30 50 1.3 5
UF1J SMA 600 1 30 75 1.7 5
UF1K SMA 800 1 30 75 1.7 5
UF1M SMA 1000 1 30 75 1.7 5






SMA Diode Fast Recorvery UF1A UF1B UF1D UF1G UF1J UF1K UF1M DO-214AC 0SMA Diode Fast Recorvery UF1A UF1B UF1D UF1G UF1J UF1K UF1M DO-214AC 1SMA Diode Fast Recorvery UF1A UF1B UF1D UF1G UF1J UF1K UF1M DO-214AC 2

SMA Diode Fast Recorvery UF1A UF1B UF1D UF1G UF1J UF1K UF1M DO-214AC 3SMA Diode Fast Recorvery UF1A UF1B UF1D UF1G UF1J UF1K UF1M DO-214AC 4
