US1A US1B US1D US1G US1J US1K US1M Fast Switching Diode DO-214AC SMA

  • US1A US1B US1D US1G US1J US1K US1M Fast Switching Diode DO-214AC SMA
  • US1A US1B US1D US1G US1J US1K US1M Fast Switching Diode DO-214AC SMA
  • US1A US1B US1D US1G US1J US1K US1M Fast Switching Diode DO-214AC SMA
Place of Origin CHINA
Brand Name THINKCHIP
Model Number US1A US1B US1D US1G US1J US1K US1M
Minimum Order Quantity 100PCS
Price negotiable

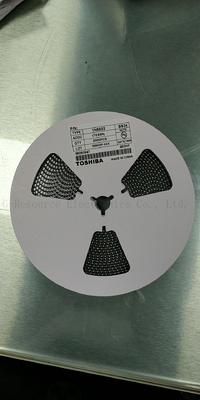

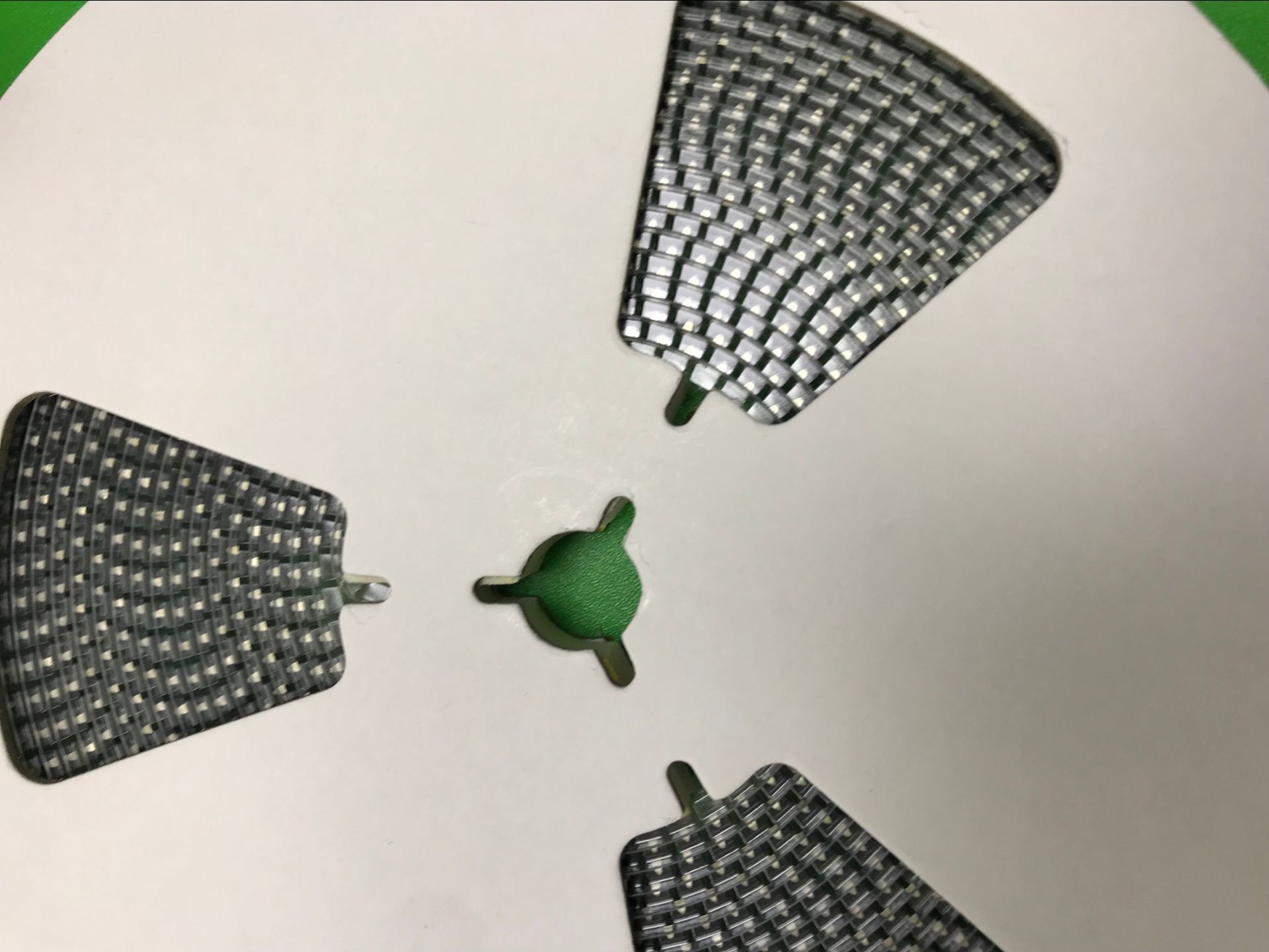

Packaging Details Tape & Reel (TR) / Cut Tape (CT)
Delivery Time 1-2 WORK DAYS
Payment Terms T/T, Western Union,paypal, MoneyGram
Supply Ability 9,900,000 pcs/weekly

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package SMA IR(uA) 5
IFSM(A) 50 VF(V) 1
VRRM(V) 50 Trr(ns) 30
IO(A) 1 TYPE US1A
Highlight

fast recovery rectifier diode

,

high power rectifier diode
Leave a Message
Product Description

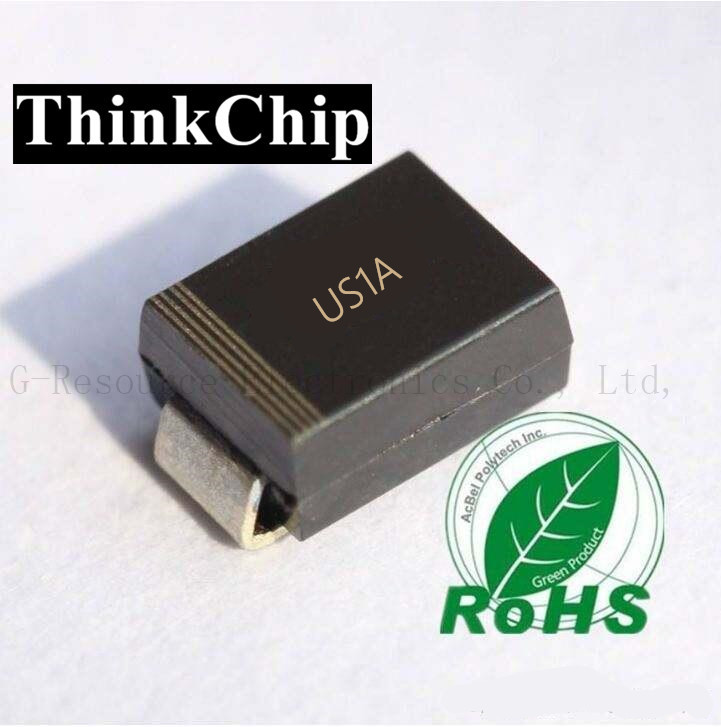

US1A US1B US1D US1G US1J US1K US1M Fast Recorvery Diode Fast Switching Diode DO-214AC SMA



FEATURES
 Glass Passivated Die Construction
 Super-Fast Recovery Time For High Efficiency
 Low Forward Voltage Drop and High Current Capability
 Ideally Suited for Automated Assembly
 Plastic Material: UL Flammability Classification Rating 94V-0
MECHANICAL DATA
 Case: DO-214AC Molded plastic
 Terminals: Pure tin plated, lead free
 Polarity: Indicated by cathode band
 Weight: 70mg (approx.)



other items



Type Package VRRM(V) IO(A) IFSM(A) Trr(ns) VF(V) IR(uA)
US1A SMA 50 1 30 50 1 5
US1B SMA 100 1 30 50 1 5
US1D SMA 200 1 30 50 1 5
US1G SMA 400 1 30 50 1.3 5
US1J SMA 600 1 30 75 1.7 5
US1K SMA 800 1 30 75 1.7 5
US1M SMA 1000 1 30 75 1.7 5
US4A SMC 50 4 240 50 1 5
US4B SMC 100 4 240 50 1 5
US4D SMC 200 4 240 50 1 5
US4G SMC 400 4 240 50 1.3 5
US4J SMC 600 4 240 70 1.65 5
US4K SMC 800 4 240 70 1.65 5
US4M SMC 1000 4 240 70 1.65 5
US5A SMC 50 5 100 50 1 10
US5B SMC 100 5 100 50 1 10
US5D SMC 200 5 100 50 1 10
US5G SMC 400 5 100 50 1.4 10
US5J SMC 600 5 100 75 1.7 10
US5K SMC 800 5 100 75 1.7 10
US5M SMC 1000 5 100 75 1 10



US1A SMA 50 1 30 50 1 5
US1B SMA 100 1 30 50 1 5
US1D SMA 200 1 30 50 1 5
US1G SMA 400 1 30 50 1.3 5
US1J SMA 600 1 30 75 1.7 5
US1K SMA 800 1 30 75 1.7 5
US1M SMA 1000 1 30 75 1.7 5
US4A SMC 50 4 240 50 1 5
US4B SMC 100 4 240 50 1 5
US4D SMC 200 4 240 50 1 5
US4G SMC 400 4 240 50 1.3 5
US4J SMC 600 4 240 70 1.65 5
US4K SMC 800 4 240 70 1.65 5
US4M SMC 1000 4 240 70 1.65 5
US5A SMC 50 5 100 50 1 10
US5B SMC 100 5 100 50 1 10
US5D SMC 200 5 100 50 1 10
US5G SMC 400 5 100 50 1.4 10
US5J SMC 600 5 100 75 1.7 10
US5K SMC 800 5 100 75 1.7 10
US5M SMC 1000 5 100 75 1 10


US1A US1B US1D US1G US1J US1K US1M Fast Switching Diode DO-214AC SMA 0US1A US1B US1D US1G US1J US1K US1M Fast Switching Diode DO-214AC SMA 1US1A US1B US1D US1G US1J US1K US1M Fast Switching Diode DO-214AC SMA 2

US1A US1B US1D US1G US1J US1K US1M Fast Switching Diode DO-214AC SMA 3US1A US1B US1D US1G US1J US1K US1M Fast Switching Diode DO-214AC SMA 4
