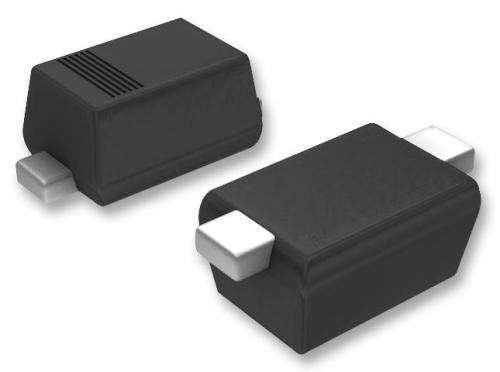

ESD Esd Tvs Diode PESD3V3V 5.3V 11V 1.5A 8 20µS 16W SOT SOD SSOP Quadruple Bidirectional

  • ESD Esd Tvs Diode PESD3V3V 5.3V 11V 1.5A 8 20µS 16W SOT SOD SSOP Quadruple Bidirectional
Place of Origin Malaysia / CHINA
Brand Name Nexperia/LRC/ST/THINKCHIP
Model Number PESD3V3V1BCSF PESD3V3L4BHC PESD3V3S1UB PESD3V3S4UF PESD3V3S1UL PESD3V3S2UAT PESD3V3S2UQ PESD3V3S2UT PESD3V3S5UD
Minimum Order Quantity 3000PCS
Price negotiable
Packaging Details Tape & Reel (TR) / Cut Tape (CT)
Delivery Time 1-2 working days
Payment Terms T/T, Western Union,paypal,MoneyGram
Supply Ability 9,900,000 pcs

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage - Reverse Standoff (Typ) 3.3V (Max) Voltage - Breakdown (Min) 5.3V
Voltage - Clamping (Max) @ Ipp 11V Current - Peak Pulse (10/1000µs) 1.5A (8/20µs)
Power - Peak Pulse 16W Operating Temperature -65°C ~ 150°C
High Light

esd suppressor diode

,

tvs esd diode
Leave a Message
Product Description

WHAT IS ESD Diodes?


ESD represents the Electrostatic Discharge that "English electrostatic discharge" means. ESD is formed since the middle of this century to produce research and attenuation of electrostatic, electrostatic discharge model, electrostatic discharge effects such as current heat (spark) effect (such as fire and explosion caused by static electricity) and electromagnetic effects (such as electromagnetic interference) and other disciplines. In recent years, with the extensive application and the electromagnetic environment and the development of science and technology, microelectronic technology and more complex, electromagnetic fields such as electromagnetic interference effects on the electrostatic discharge (EMI) and electromagnetic compatibility (EMC) issues more seriously.
Our ESD protection device is mainly composed of TVS ARRAY, a device by different package. It has the merits of small volume, low junction capacitance, fast response etc..
PESD3V3S1UB    PESD3V3S4UF     PESD3V3S1UL    PESD3V3S2UAT PESD3V3S2UQ    PESD3V3S2UT     PESD3V3S5UD













Manufacturer Nexperia USA Inc.
Series -
Packaging Tape & Reel (TR)
Part Status Active
Type Zener
Unidirectional Channels 4
Voltage - Reverse Standoff (Typ) 3.3V (Max)
Voltage - Breakdown (Min) 5.3V
Voltage - Clamping (Max) @ Ipp 11V
Current - Peak Pulse (10/1000µs) 1.5A (8/20µs)
Power - Peak Pulse 16W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 15pF @ 1MHz
Operating Temperature -65°C ~ 150°C (TA)
Mounting Type Surface Mount
Package / Case SOT-665
Supplier Device Package SOT-665
Base Part Number PESD*V4U



Service

G-Resource Electronics Co., Ltd, as the preferred supplier of the world well-known enterprises, take strict quality control as the key to our success. G-Resource Electronics Co., Ltd has all along been committed to the "Zero Defect" quality management system and we have established a comprehensive quality management system, from supply chain management to single transaction monitoring, from suppliers grading system to quality inspection procedures. At the same time, we also has the excellent services of electronics field : Spot Buy Service; PPV Projects;BOM Kitting;Excess Liquidation;Value-Add Service;All-in-One Package Service. And also, we ensure the fast delivery of all our customers,we not only has closed cooperation relationship with international express :UPS,DHL,FEDEX,TNT ect but also has the great support of District logistics dedicated line.We confident that you will be satisfy with us once you start to cooperate with us. We stay here and waiting you to be our partner!
Contact us if you need more detail or quotation of these item.
Pls kindly check the below part number of same series.

Type number Package version Package name Size (mm) No of protected lines Configuration VRWM (V) Cd [typ] (pF) Cd [max] (pF) VESD IEC61000-4-2 (kV) IRM [max] (µA)
PESD3V3V1BCSF SOD962-2 DSN0603-2 0.6 x 0.3 x 0.3
PESD3V3L4BHC SOT8006 DFN1308-6 1.3 x 0.8 x 0.38
PESD3V3S1UB SOD523 SC-79 1.2 x 0.8 x 0.6 1 Unidirectional 3.3 207 300 30 2
PESD3V3S4UF SOT886 XSON6 1.45 x 1 x 0.5 4 Unidirectional 3.3 110 300 30 1
PESD3V3S1UL SOD882 DFN1006-2 1.0 x 0.6 x 0.5 1 Unidirectional 3.3 207 300 30 2
PESD3V3S2UAT SOT23 SOT23 2.9 x 1.3 x 1 2 Unidirectional 3.3 207 300 30 2
PESD3V3S2UQ SOT663 SOT663 1.6 x 1.2 x 0.55 2 Unidirectional 3.3 200 275 30 3
PESD3V3S2UT SOT23 SOT23 2.9 x 1.3 x 1 2 Unidirectional 3.3 207 300 30 2
PESD3V3S4UD SOT457 SC-74; TSOP6 2.9 x 1.5 x 1 4 Unidirectional 3.3 215 300 30 0.8
PESD3V3S5UD SOT457 SC-74; TSOP6 2.9 x 1.5 x 1 5 Unidirectional 3.3 215 300 30 0.8
