BZA408B 15KV Esd Suppressor Diode BZA408B 125 BZA408B 115 4 Voltage

  • BZA408B 15KV Esd Suppressor Diode BZA408B 125 BZA408B 115 4 Voltage
Place of Origin Malaysia / CHINA
Brand Name Nexperia/LRC/ST/THINKCHIP
Model Number BZA408B 15KV ESD BZA408B,125 BZA408B,115
Minimum Order Quantity 3000PCS
Price negotiable
Packaging Details Tape & Reel (TR) / Cut Tape (CT)
Delivery Time 1-2 working days
Payment Terms T/T, Western Union,paypal,MoneyGram
Supply Ability 9,900,000 pcs

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Bidirectional Channels 4 Voltage Voltage - Reverse Standoff (Typ) 5V (Max)
Power - Peak Pulse 20W Power Line Protection NO
High Light

esd suppressor diode

,

tvs esd diode
Leave a Message
Product Description

BZA408B 15KV ESD BZA408B,125 BZA408B,115 Quadruple bidirectional ESD transient voltage suppressor





WHAT IS ESD Diodes?


ESD represents the Electrostatic Discharge that "English electrostatic discharge" means. ESD is formed since the middle of this century to produce research and attenuation of electrostatic, electrostatic discharge model, electrostatic discharge effects such as current heat (spark) effect (such as fire and explosion caused by static electricity) and electromagnetic effects (such as electromagnetic interference) and other disciplines. In recent years, with the extensive application and the electromagnetic environment and the development of science and technology, microelectronic technology and more complex, electromagnetic fields such as electromagnetic interference effects on the electrostatic discharge (EMI) and electromagnetic compatibility (EMC) issues more seriously.
Our ESD protection device is mainly composed of TVS ARRAY, a device by different package. It has the merits of small volume, low junction capacitance, fast response etc..


BZA408B 15KV ESD BZA408B,125 BZA408B,115



Features

  1. ESD rating >15 kV, according to IEC1000-4-2
  2. Non-clamping range: -5 V to +5 V
  3. Channel separation: >70 dB
  4. Low reverse current: <100 nA
  5. Low diode capacitance: <75 pF
  6. AEC-Q101 qualified

Target applications

  1. Computers and peripherals
  2. Audio and video equipment
  3. Communication systems
  4. Portable electronics

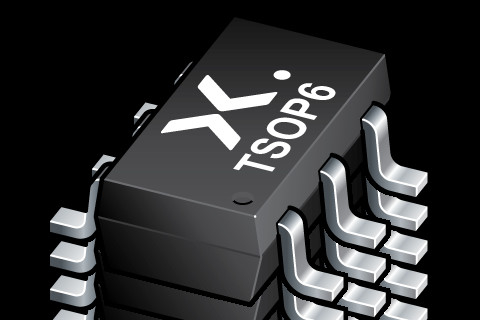

SC-74 TSOP6(SOT457)



Base Part Number BZA408
Packaging Tape & Reel (TR)
Part Status Active
Type Zener
Bidirectional Channels 4
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) -
Voltage - Clamping (Max) @ Ipp -
Current - Peak Pulse (10/1000µs) -
Power - Peak Pulse 20W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 75pF @ 1MHz
Operating Temperature -65°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SC-74, SOT-457
Supplier Device Package 6-TSOP



Service

G-Resource Electronics Co., Ltd, as the preferred supplier of the world well-known enterprises, take strict quality control as the key to our success. G-Resource Electronics Co., Ltd has all along been committed to the "Zero Defect" quality management system and we have established a comprehensive quality management system, from supply chain management to single transaction monitoring, from suppliers grading system to quality inspection procedures. At the same time, we also has the excellent services of electronics field : Spot Buy Service; PPV Projects;BOM Kitting;Excess Liquidation;Value-Add Service;All-in-One Package Service. And also, we ensure the fast delivery of all our customers,we not only has closed cooperation relationship with international express :UPS,DHL,FEDEX,TNT ect but also has the great support of District logistics dedicated line.We confident that you will be satisfy with us once you start to cooperate with us. We stay here and waiting you to be our partner!
Contact us if you need more detail or quotation of these item.
Pls kindly check the below part number of same series.









Type number Package version Package name Size (mm) No of protected lines Configuration VRWM (V) Cd [typ] (pF) Cd [max] (pF) VESD IEC61000-4-2 (kV) IRM [max] (µA)
BZA408B SOT457 SC-74; TSOP6 2.9 x 1.5 x 1 4 Bidirectional 5   75 15 0.1
BZA420A SOT457 SC-74; TSOP6 2.9 x 1.5 x 1 4 Unidirectional 15   48 8 0.1
BZA456A SOT457 SC-74; TSOP6 2.9 x 1.5 x 1 4 Unidirectional 3   240 8 2
BZA462A SOT457 SC-74; TSOP6 2.9 x 1.5 x 1 4 Unidirectional 4   200 15 0.7
BZA856A SOT353 TSSOP5 2.1 x 1.25 x 0.95 4 Unidirectional 3   240 8 2
BZA862A SOT353 TSSOP5 2.1 x 1.25 x 0.95 4 Unidirectional 4   200 8 0.7
BZA856AVL SOT353 TSSOP5 2.1 x 1.25 x 0.95 4 Unidirectional 3.3 22 28 15 0.2
BZA956A SOT665 SOT665 1.6 x 1.2 x 0.55 4 Unidirectional 3   125 8 1
BZA962A SOT665 SOT665 1.6 x 1.2 x 0.55 4 Unidirectional 4   105 8 0.5
BZA968A SOT665 SOT665 1.6 x 1.2 x 0.55 4 Unidirectional 4.3   90 8 0.1
BZA962AVL SOT665 SOT665 1.6 x 1.2 x 0.55 4 Unidirectional 5 18 22 15




BZA408B 15KV Esd Suppressor Diode BZA408B 125 BZA408B 115 4 Voltage 0

BZA408B 15KV Esd Suppressor Diode BZA408B 125 BZA408B 115 4 Voltage 1
BZA408B 15KV Esd Suppressor Diode BZA408B 125 BZA408B 115 4 Voltage 2
