1A 1.1V General Purpose Power Schottky Diode Sod80 4007 1n4007 LM4007

  • 1A 1.1V General Purpose Power Schottky Diode Sod80 4007 1n4007 LM4007
  • 1A 1.1V General Purpose Power Schottky Diode Sod80 4007 1n4007 LM4007
Place of Origin CHINA
Brand Name NXP/LRC/FSC/ON/MCC/DIODE/Thinkchip
Model Number LM4007
Minimum Order Quantity 100PCS
Price negotiable
Packaging Details Tape & Reel (TR) / Cut Tape (CT)
Delivery Time 1-2 working days
Payment Terms T/T, Western Union,paypal,MoneyGram
Supply Ability 9,900,000 pcs

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage - DC Reverse (Vr) (Max) 1000V Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 1A Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 5µA @ 1000V Package / Case DO-213AB, MELF (Glass)
High Light

general purpose schottky diode

,

high power rectifier diode
Leave a Message
Product Description

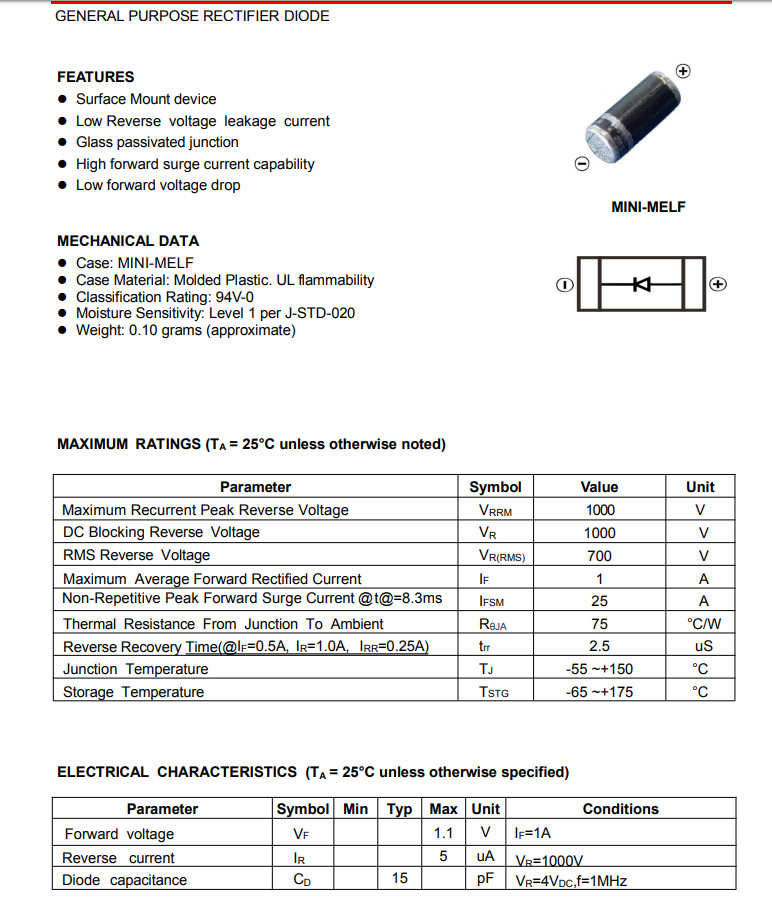

GENERAL PURPOSE RECTIFIER DIODE


A rectifier is an electrical device that converts alternating current (AC), which periodically reverses direction, to direct current (DC), which flows in only one direction. The process is known as rectification, since it "straightens" the direction of current.







FEATURES
l Surface Mount device
l Low Reverse voltage leakage current
l Glass passivated junction
l High forward surge current capability
l Low forward voltage drop
MELF
MECHANICAL DATA
l Case: MELF
l Case Material: Molded Plastic. UL flammability
l Classification Rating: 94V-0
l Moisture Sensitivity: Level 1 per J-STD-020









Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1000V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 1A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 5µA @ 1000V
Capacitance @ Vr, F -
Mounting Type Surface Mount
Package / Case DO-213AB, MELF (Glass)
Supplier Device Package MELF

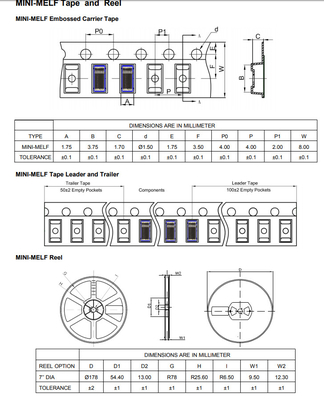

1A 1.1V General Purpose Power Schottky Diode Sod80 4007 1n4007 LM4007 0
1A 1.1V General Purpose Power Schottky Diode Sod80 4007 1n4007 LM4007 1

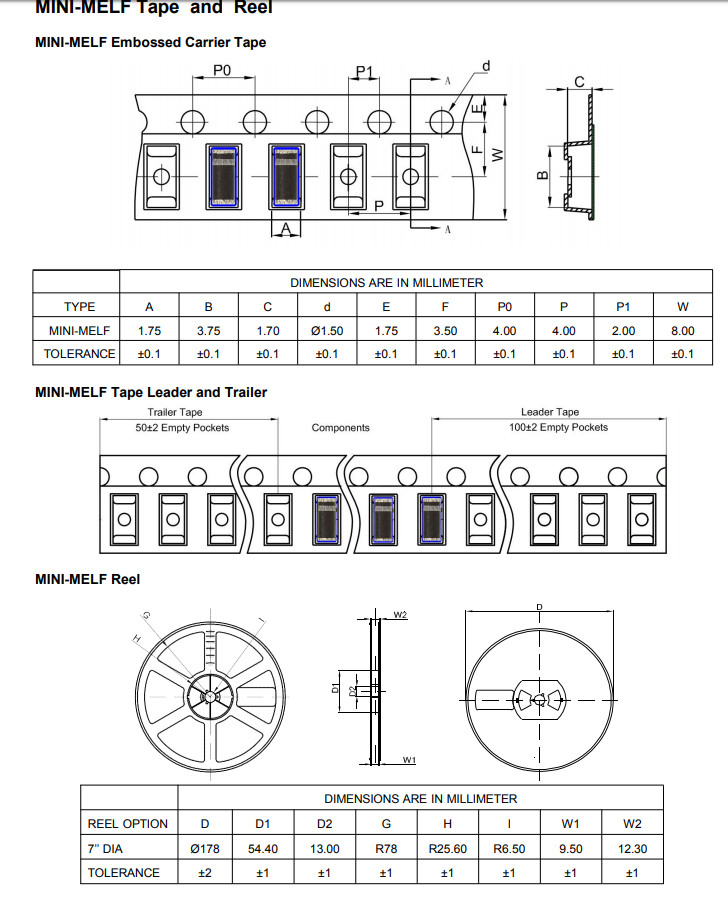

1A 1.1V General Purpose Power Schottky Diode Sod80 4007 1n4007 LM4007 2
