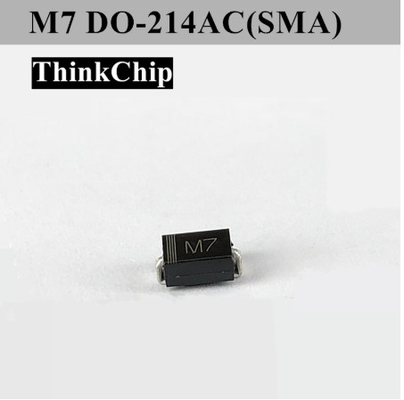

M7 1N4007 Surface Mount General Purpose Rectifier Diode High Voltage DO-214AC

  • M7 1N4007 Surface Mount General Purpose Rectifier Diode High Voltage DO-214AC
Place of Origin CHINA
Brand Name TOSHIBA/MIC/MCC/Thinkchip
Model Number 1N4007G M7
Minimum Order Quantity 100PCS
Price negotiable
Packaging Details Tape & Reel (TR) / Cut Tape (CT)
Delivery Time 1-2 working days
Payment Terms T/T, Western Union,paypal
Supply Ability 9,900,000 pcs

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
BRAND TOS/MIC/MCC Packaging CUT TAPE
TYPE M7 VOLTAGE 1000V
High Light

general purpose schottky diode

,

high power rectifier diode
Leave a Message
Product Description
Manufacturer TOSHIBA / MIC/ MCC/Thinkchip
Series Automotive, AEC-Q101
Packaging Cut Tape (CT)
Part Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1000V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 1A
Speed Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 2.5µs
Current - Reverse Leakage @ Vr 5µA @ 1000V
Capacitance @ Vr, F 2.5pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package DO-214AC (SMA)
Operating Temperature - Junction -55°C ~ 150°C
Lead Free Status / RoHS Status Lead free / ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
