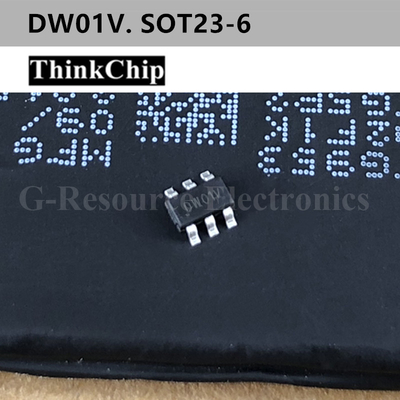

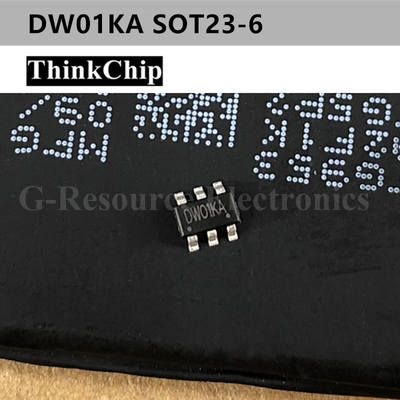

DW01V DW01KA SOT23-6 Voltage Regulator IC / Electronic Smd Regulator Ic
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| TYPE | DW01 | Package | SOT23-6 |
|---|---|---|---|

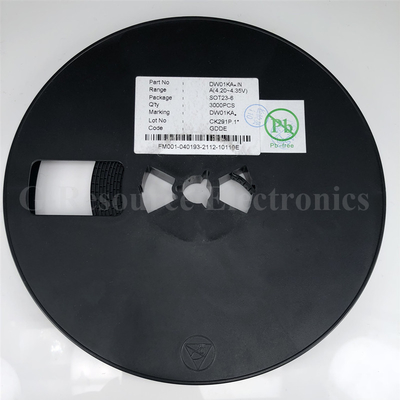

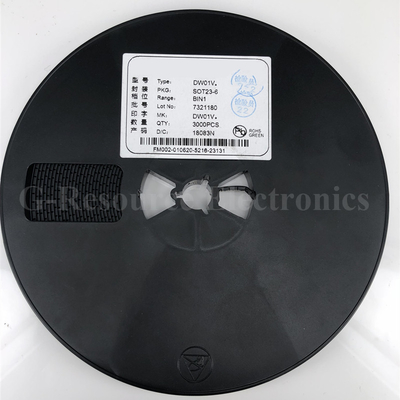

| REEL | 3000/REEL | DATE CODE | NEW |
| High Light | three terminal voltage regulator,ldo voltage regulator |
||
Product Description
DW01V DW01KA SOT23-6 SMD Lithium battery protection chip New original
Contact us if you need more detail or quotation of these item. info@gr-ele.com
G-Resource Electronics Co., Ltd, as the preferred supplier of the world well-known enterprises, take strict quality control as the key to our success. G-Resource Electronics Co., Ltd has all along been committed to the "Zero Defect" quality management system and we have established a comprehensive quality management system, from supply chain management to single transaction monitoring, from suppliers grading system to quality inspection procedures. At the same time, we also has the excellent services of electronics field : Spot Buy Service; PPV Projects;BOM Kitting;Excess Liquidation;Value-Add Service;All-in-One Package Service. And also, we ensure the fast delivery of all our customers,we not only has closed cooperation relationship with international express :UPS,DHL,FEDEX,TNT ect but also has the great support of District logistics dedicated line.We confident that you will be satisfy with us once you start to cooperate with us. We stay here and waiting you to be our partner!
DW01A
4.35v ideal protection circuit for single lithium ion or lithium polymer batteries;
→ high-precision protection voltage (over-charge and over-discharge) detection;
→ in the case of over discharge, low power consumption mode can be allowed or forbidden;
High precision discharge current protection monitoring;
→ battery short circuit protection;
→ multiple types of detection voltage and delay time can be selected;
→ different types of 0V can be selected -- battery charging allowed/prohibited;
→ few peripheral components;
→ microminiaturized sot23-6 package.
Low operating current;
→ overcharge detection 4.375V, overcharge release 4.15V;
→ overrelease detection 2.5v, overrelease release 2.9v;
→ overcurrent detection 0.15v, short-circuit current detection 1.0v;
→ charger detection;
→ reset resistor with overcurrent protection;
Application:
→ charging and discharging protection circuit of lithium battery;
→ telephone battery or other lithium battery high-precision protector;
→ single lithium battery protection circuit;
→ 4.35v lithium battery protection circuit.
Pls kindly check the below part number of same series.
| DW01G | SOT23-6 |
| DW01D | SOT23-6 |
| DW01FA | SOT23-6 |
| DW01V | SOT23-6 |
| DW01KA | SOT23-6 |
| DW01A | SOT23-6 |
| DW01B | SOT23-6 |
| DW01AC | SOT23-6 |
