High Voltage 72.7V Clamp Transient Voltage Suppression Diode 20.6A Ipp DO-214AB SMCJ

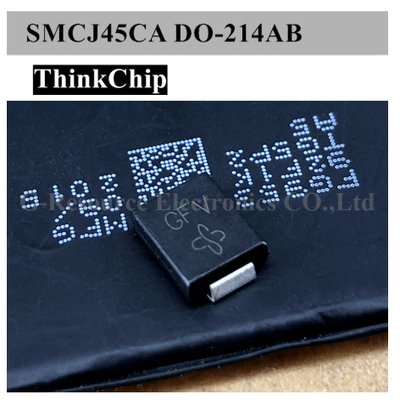

SMCJ45CA 72.7V Clamp 20.6A Ipp Tvs Diode Surface Mount DO-214AB (SMCJ)

Transient voltage suppressor (TransientVoltageSuppressor) referred to as TVS pipe, electrical characteristics of the TVS tube is made of P-N junction area, doping concentration and wafer resist decision. The capacity and the P-N junction area high inrush current is proportional to the. The protection of TVS is widely used in semiconductor and sensitive devices, usually used to protect the two levels of power and signal circuit, and electrostatic. The characteristics of fast response speed (PS), small volume, pulse power is larger, the clamp voltage low. The 10/1000 μ s pulse power from 400W to 30KW, pulse peak current from 0.52A to 544A; the breakdown voltage is from 6.8V to 550V series, circuit for the different voltage use.

FEATURES

1. Built-in strain relief
2. Glass passivated junction
3. Low inductance
4. Excellent clamping capability
5. Repetition Rate (duty cycle):0.01%
6. Fast response time: typically less than 1.0ps
7. from 0 Volts to V(BR) for unidirectional types
8. Typical IR less than 1mA above 10V
9. High temperature soldering guaranteed: 260°C/10 seconds, l Surface Mount device

Base Part Number	SMCJ45CA

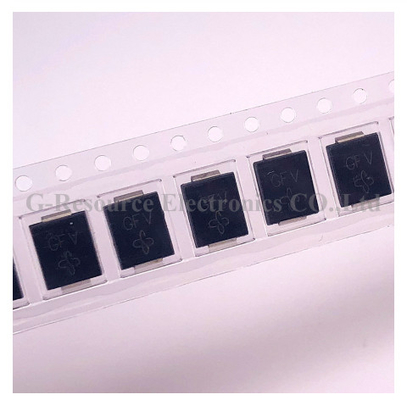

Packaging	Tape & Reel (TR)
Part Status	Active
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	45V
Voltage - Breakdown (Min)	50V
Voltage - Clamping (Max) @ Ipp	72.7V
Current - Peak Pulse (10/1000µs)	20.6A
Power - Peak Pulse	1500W (1.5kW)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AB, SMC
Supplier Device Package	DO-214AB (SMCJ)
