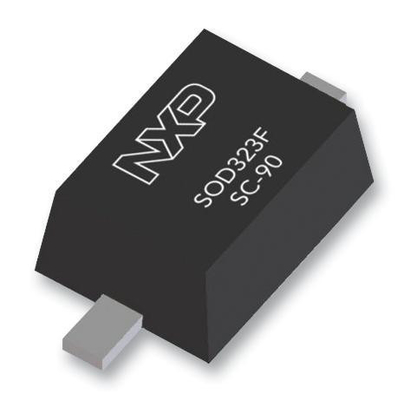

PESD12V ESD Protection Diode Ipp SOT SOD SSOP / Tvs Diodes For Esd Protection

  • PESD12V ESD Protection Diode Ipp SOT SOD SSOP / Tvs Diodes For Esd Protection
Place of Origin Malaysia / CHINA
Brand Name Nexperia/LRC/ST/THINKCHIP
Model Number PESD12VA-SF PESD12VS1UA PESD12VS1UJ PESD12VS1UB PESD12VS1ULD PESD12VS1UL PESD12VS2UQ PESD12VS2UT PESD12VS5UD
Minimum Order Quantity 3000PCS
Price negotiable
Packaging Details Tape & Reel (TR) / Cut Tape (CT)
Delivery Time 1-2 working days
Payment Terms T/T, Western Union,paypal,MoneyGram
Supply Ability 9,900,000 pcs

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage - Reverse Standoff (Typ) 12 (Max) Voltage - Breakdown (Min) 14V
Voltage - Clamping (Max) @ Ipp 30V Current - Peak Pulse (10/1000µs) 6.1A (8/20µs)
Power - Peak Pulse - Operating Temperature -65°C ~ 150°C
Highlight

esd suppressor diode

,

tvs esd diode
Leave a Message
Product Description

PESD12V 30V Clamp 6.1A (8/20µs) Ipp SOT SOD SSOP ESD Quadruple bidirectional ESD transient voltage suppressor



WHAT IS ESD Diodes?


ESD represents the Electrostatic Discharge that "English electrostatic discharge" means. ESD is formed since the middle of this century to produce research and attenuation of electrostatic, electrostatic discharge model, electrostatic discharge effects such as current heat (spark) effect (such as fire and explosion caused by static electricity) and electromagnetic effects (such as electromagnetic interference) and other disciplines. In recent years, with the extensive application and the electromagnetic environment and the development of science and technology, microelectronic technology and more complex, electromagnetic fields such as electromagnetic interference effects on the electrostatic discharge (EMI) and electromagnetic compatibility (EMC) issues more seriously.
Our ESD protection device is mainly composed of TVS ARRAY, a device by different package. It has the merits of small volume, low junction capacitance, fast response etc...





  1. PESD12VA-SF
  2. PESD12VS1UA
  3. PESD12VS1UJ
  4. PESD12VS1UB
  5. PESD12VS1ULD
  6. PESD12VS1UL
  7. PESD12VS2UQ
  8. PESD12VS2UT
  9. PESD12VS5UD





Manufacturer Nexperia USA Inc.
Series -
Packaging Tape & Reel (TR)
Part Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 12V (Max)
Voltage - Breakdown (Min) 14V
Voltage - Clamping (Max) @ Ipp 30V
Current - Peak Pulse (10/1000µs) 6.1A (8/20µs)
Power - Peak Pulse -
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 17pF @ 1MHz
Operating Temperature -55°C ~ 150°C (TA)
Mounting Type Surface Mount
Package / Case 0201 (0603 Metric)
Supplier Device Package DSN0603-2







Service


Contact us if you need more detail or quotation of these item.
Pls kindly check the below part number of same series.





Type number Package version Package name Size (mm) No of protected lines Configuration VRWM (V) Cd [typ] (pF) Cd [max] (pF) VESD IEC61000-4-2 (kV) IRM [max] (µA)
PESD12VA-SF SOD962 DSN0603-2 0.6 x 0.3 x 0.3
PESD12VS1UA SOD323 SOD323 1.7 x 1.25 x 0.95 1 Unidirectional 12 160 180 30 0.1
PESD12VS1UJ SOD323F SC-90 1.7 x 1.25 x 0.7 1 Unidirectional 12 160 180 30 0.1
PESD12VS1UB SOD523 SC-79 1.2 x 0.8 x 0.6 1 Unidirectional 12 38 75 30 0.05
PESD12VS1ULD SOD882D DFN1006D-2 1 x 0.6 x 0.4 1 Unidirectional 12 38 75 30 0.05
PESD12VS1UL SOD882 DFN1006-2 1.0 x 0.6 x 0.5 1 Unidirectional 12 38 75 30 0.05
PESD12VS2UQ SOT663 SOT663 1.6 x 1.2 x 0.55 2 Unidirectional 12 38 100 30 0.03
PESD12VS2UT SOT23 SOT23 2.9 x 1.3 x 1 2 Unidirectional 12 38 75 30 1
PESD12VS5UD SOT457 SC-74; TSOP6 2.9 x 1.5 x 1 5 Unidirectional 12 73 100 30 0.015
