SMBJ13 SMBJ13A SMBJ30A Transient Voltage Suppression Diode DO214-AA SMB SMBJ

  • SMBJ13 SMBJ13A SMBJ30A Transient Voltage Suppression Diode DO214-AA SMB SMBJ
  • SMBJ13 SMBJ13A SMBJ30A Transient Voltage Suppression Diode DO214-AA SMB SMBJ
  • SMBJ13 SMBJ13A SMBJ30A Transient Voltage Suppression Diode DO214-AA SMB SMBJ
Place of Origin CHINA
Brand Name vishay/diode/thinkchip
Model Number SMBJ13A
Minimum Order Quantity 100PCS
Price negotiable

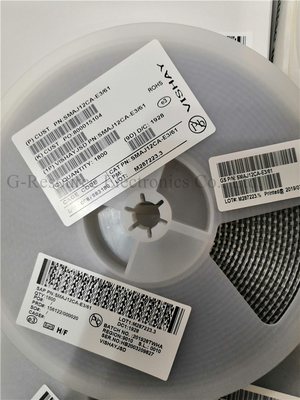

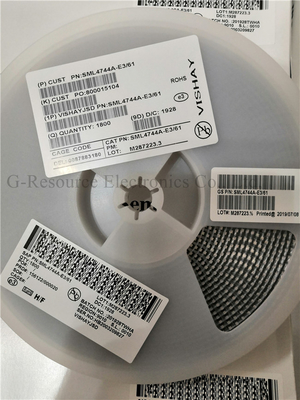

Packaging Details Tape & Reel (TR) / Cut Tape (CT)
Delivery Time 1-2 working days
Payment Terms T/T, Western Union,paypal
Supply Ability 9,900,000 pcs

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type SMBJ13A Package SMB
BVRWM(V) 13 Min(V) 14.4
Max(V) 15.9 IT(mA) 1
IR(uA) 1 VC(V) 27.9
IPP(A) 21.5 PD(mW) 5000
Highlight

bidirectional transient voltage suppressor

,

surface mount transient voltage suppressor
Leave a Message
Product Description

SMBJ13 SMBJ13A SMBJ30A Tvs Diode Surface Mount DO214-AA SMB SMBJ





Contact us if you need more detail or quotation of these item. info@gr-ele.com

G-Resource Electronics Co., Ltd, as the preferred supplier of the world well-known enterprises, take strict quality control as the key to our success. G-Resource Electronics Co., Ltd has all along been committed to the "Zero Defect" quality management system and we have established a comprehensive quality management system, from supply chain management to single transaction monitoring, from suppliers grading system to quality inspection procedures. At the same time, we also has the excellent services of electronics field : Spot Buy Service; PPV Projects;BOM Kitting;Excess Liquidation;Value-Add Service;All-in-One Package Service. And also, we ensure the fast delivery of all our customers,we not only has closed cooperation relationship with international express :UPS,DHL,FEDEX,TNT ect but also has the great support of District logistics dedicated line.We confident that you will be satisfy with us once you start to cooperate with us. We stay here and waiting you to be our partner!
Pls kindly check the below part number of same series.



Transient voltage suppressor (TransientVoltageSuppressor) referred to as TVS pipe, electrical characteristics of the TVS tube is made of P-N junction area, doping concentration and wafer resist decision. The capacity and the P-N junction area high inrush current is proportional to the. The protection of TVS is widely used in semiconductor and sensitive devices, usually used to protect the two levels of power and signal circuit, and electrostatic. The characteristics of fast response speed (PS), small volume, pulse power is larger, the clamp voltage low. The 10/1000 μ s pulse power from 400W to 30KW, pulse peak current from 0.52A to 544A; the breakdown voltage is from 6.8V to 550V series, circuit for the different voltage use.



FEATURES

  1. Built-in strain relief
  2. Glass passivated junction
  3. Low inductance
  4. Excellent clamping capability
  5. Repetition Rate (duty cycle):0.01%
  6. Fast response time: typically less than 1.0ps
  7. from 0 Volts to V(BR) for unidirectional types
  8. Typical IR less than 1mA above 10V
  9. High temperature soldering guaranteed: 260°C/10 seconds, l Surface Mount device




Type Package UNI/BI VRWM(V) Min(V) Max(V) IT(mA) IR(uA) VC(V) IPP(A) PD(mW)
SMBJ100A SMB NZ 100 111 123 1 1 3.7 162 5000
SMBJ100CA SMB NZ 100 111 123 1 1 3.7 162 5000
SMBJ10A SMB KX 10 11.1 12.3 1 5 35.3 17 5000
SMBJ10CA SMB AX 10 11.1 12.3 1 5 35.3 17 5000
SMBJ110A SMB PE 110 122 135 1 1 3.4 177 5000
SMBJ110CA SMB PE 110 122 135 1 1 3.4 177 5000
SMBJ11A SMB KZ 11 12.2 13.5 1 5 33 18.2 5000
SMBJ11CA SMB KZ 11 12.2 13.5 1 5 33 18.2 5000
SMBJ120A SMB PG 120 133 147 1 1 3.1 193 5000
SMBJ120CA SMB PG 120 133 147 1 1 3.1 193 5000
SMBJ12A SMB LE 12 13.3 14.7 1 5 30.2 19.9 5000
SMBJ12CA SMB BE 12 13.3 14.7 1 5 30.2 19.9 5000
SMBJ130A SMB PK 130 144 159 1 1 2.9 209 5000
SMBJ130CA SMB PK 130 144 159 1 1 2.9 209 5000
SMBJ13A SMB LG 13 14.4 15.9 1 1 27.9 21.5 5000
SMBJ13CA SMB LG 13 14.4 15.9 1 1 27.9 21.5 5000
SMBJ14A SMB LK 14 15.6 17.2 1 1 25.9 23.2 5000
SMBJ14CA SMB BK 14 15.6 17.2 1 1 25.9 23.2 5000
SMBJ150A SMB PM 150 167 185 1 1 2.5 243 5000
SMBJ150CA SMB PM 150 167 185 1 1 2.5 243 5000
SMBJ15A SMB LM 15 16.7 18.5 1 1 24.6 24.4 5000
SMBJ15CA SMB BM 15 16.7 18.5 1 1 24.6 24.4 5000
SMBJ160A SMB PP 160 178 197 1 1 2.3 259 5000
SMBJ160CA SMB PP 160 178 197 1 1 2.3 259 5000
SMBJ16A SMB LP 16 17.8 19.7 1 1 23.1 26 5000
SMBJ16CA SMB LM 16 17.8 19.7 1 1 23.1 26 5000
SMBJ170A SMB PR 170 189 209 1 1 2.2 275 5000
SMBJ170CA SMB PR 170 189 209 1 1 2.2 275 5000
SMBJ17A SMB LR 17 18.9 20.9 1 1 21.7 27.6 5000
SMBJ17CA SMB LR 17 18.9 20.9 1 1 21.7 27.6 5000
SMBJ188A SMB PS 188 209 231 1 1 2 328 5000
SMBJ188CA SMB PS 188 209 231 1 1 2 328 5000
SMBJ18A SMB LT 18 20 22.1 1 1 20.5 29.2 5000
SMBJ18CA SMB BT 18 20 22.1 1 1 20.5 29.2 5000
SMBJ20A SMB LV 20 22.2 24.5 1 1 18.5 32.4 5000
SMBJ20CA SMB LV 20 22.2 24.5 1 1 18.5 32.4 5000
SMBJ22A SMB LX 22 24.4 26.9 1 1 16.9 35.5 5000
SMBJ22CA SMB BX 22 24.4 26.9 1 1 16.9 35.5 5000
SMBJ24A SMB LZ 24 26.7 29.5 1 1 15.4 38.9 5000
SMBJ24CA SMB BZ 24 26.7 29.5 1 1 15.4 38.9 5000
SMBJ26A SMB ME 26 28.9 31.9 1 1 14.3 42.1 5000
SMBJ26CA SMB CE 26 28.9 31.9 1 1 14.3 42.1 5000
SMBJ28A SMB MG 28 31.1 34.4 1 1 13.2 45.4 5000
SMBJ28CA SMB MG 28 31.1 34.4 1 1 13.2 45.4 5000
SMBJ30A SMB MK 30 33.3 36.8 1 1 12.4 48.4 5000
SMBJ30CA SMB CK 30 33.3 36.8 1 1 12.4 48.4 5000
SMBJ33A SMB MM 33 36.7 40.6 1 1 11.3 53.3 5000
SMBJ33CA SMB CM 33 36.7 40.6 1 1 11.3 53.3 5000
SMBJ36A SMB MP 36 40 44.2 1 1 10.3 58.1 5000
SMBJ36CA SMB CP 36 40 44.2 1 1 10.3 58.1 5000
SMBJ40A SMB MR 40 44.4 49.1 1 1 9.3 64.5 5000
SMBJ40CA SMB CR 40 44.4 49.1 1 1 9.3 64.5 5000
SMBJ43A SMB MT 43 47.8 52.8 1 1 8.6 69.4 5000
SMBJ43CA SMB CT 43 47.8 52.8 1 1 8.6 69.4 5000
SMBJ45A SMB MV 45 50 55.3 1 1 8.3 72.7 5000
SMBJ45CA SMB MV 45 50 55.3 1 1 8.3 72.7 5000
SMBJ48A SMB MX 48 53.3 58.9 1 1 7.8 77.4 5000
SMBJ48CA SMB MX 48 53.3 58.9 1 1 7.8 77.4 5000
SMBJ5.0A SMB KE 5 6.4 7.07 10 800 65.2 9.2 5000
SMBJ5.0CA SMB KE 5 6.4 7.07 10 800 65.2 9.2 5000
SMBJ51A SMB MZ 51 56.7 62.7 1 1 7.3 82.4 5000
SMBJ51CA SMB MZ 51 56.7 62.7 1 1 7.3 82.4 5000
SMBJ54A SMB NE 54 60 66.3 1 1 6.9 87.1 5000
SMBJ54CA SMB NE 54 60 66.3 1 1 6.9 87.1 5000
SMBJ58A SMB NG 58 64.4 71.2 1 1 6.4 93.6 5000
SMBJ58CA SMB NG 58 64.4 71.2 1 1 6.4 93.6 5000
SMBJ6.0A SMB KG 6 6.67 7.37 10 800 58.3 10.3 5000
SMBJ6.0CA SMB KG 6 6.67 7.37 10 800 58.3 10.3 5000
SMBJ6.5A SMB KK 6.5 7.22 7.98 10 500 53.6 11.2 5000
SMBJ6.5CA SMB AK 6.5 7.22 7.98 10 500 53.6 11.2 5000
SMBJ60A SMB NK 60 66.7 73.7 1 1 6.2 96.8 5000
SMBJ60CA SMB NK 60 66.7 73.7 1 1 6.2 96.8 5000
SMBJ64A SMB NM 64 71.1 78.6 1 1 5.8 103 5000
SMBJ64CA SMB NM 64 71.1 78.6 1 1 5.8 103 5000
SMBJ7.0A SMB KM 7 7.78 8.6 10 200 50 12 5000
SMBJ7.0CA SMB KM 7 7.78 8.6 10 200 50 12 5000
SMBJ7.5A SMB KP 7.5 8.33 9.21 1 100 46.5 12.9 5000
SMBJ7.5CA SMB AP 7.5 8.33 9.21 1 100 46.5 12.9 5000
SMBJ70A SMB NP 70 77.8 86 1 1 5.3 113 5000
SMBJ70CA SMB NP 70 77.8 86 1 1 5.3 113 5000
SMBJ75A SMB NR 75 83.3 92.1 1 1 5 121 5000
SMBJ75CA SMB NR 75 83.3 92.1 1 1 5 121 5000
SMBJ78A SMB NT 78 86.7 95.8 1 1 4.8 126 5000
SMBJ78CA SMB NT 78 86.7 95.8 1 1 4.8 126 5000
SMBJ8.0A SMB KR 8 8.89 9.83 1 50 44.1 13.6 5000
SMBJ8.0CA SMB AR 8 8.89 9.83 1 50 44.1 13.6 5000
SMBJ8.5A SMB KT 8.5 9.44 10.4 1 20 41.7 14.4 5000
SMBJ8.5CA SMB AT 8.5 9.44 10.4 1 20 41.7 14.4 5000
SMBJ85A SMB NV 85 94.4 104 1 1 4.4 137 5000
SMBJ85CA SMB NV 85 94.4 104 1 1 4.4 137 5000
SMBJ9.0A SMB KV 9 10 11.1 1 10 39 15.4 5000
SMBJ9.0CA SMB AV 9 10 11.1 1 10 39 15.4 5000
SMBJ90A SMB NX 90 100 111 1 1 4.1 146 5000
SMBJ90CA SMB NX 90 100 111 1 1 4.1 146 5000
