TAJE477K010RNJ MLCC Capacitor , Tantalum Capacitor 470uF(477) ±10% 10V CASE-E 470/10E

  • TAJE477K010RNJ MLCC Capacitor , Tantalum Capacitor 470uF(477) ±10% 10V CASE-E 470/10E
  • TAJE477K010RNJ MLCC Capacitor , Tantalum Capacitor 470uF(477) ±10% 10V CASE-E 470/10E
Place of Origin Japan
Brand Name AVX/KEMET
Model Number TAJE477K010RNJ 470uF(477) ±10% 10V CASE-E 470/10E
Minimum Order Quantity 100PCS
Price negotiable
Packaging Details Tape & Reel (TR) / Cut Tape (CT)
Delivery Time 1-2 working days
Payment Terms T/T, Western Union,paypal,MoneyGram
Supply Ability 9,900,000 pcs

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Capacitance 470UF Tolerance 10%
Voltage - Rated 10V Package / Case 2917 (7343 Metric) CASE E
ESR (Equivalent Series Resistance) 500mOhm Operating Temperature -55°C ~ 125°C
Highlight

chip tantalum capacitor

,

ceramic chip capacitor
Leave a Message
Product Description

TAJE477K010RNJ MLCC Capacitor , Tantalum Capacitor 470uF(477) ±10% 10V CASE-E 470/10E





A tantalum electrolytic capacitor is an electrolytic capacitor, a passive component of electronic circuits. It consists of a pellet of porous tantalum metal as an anode, covered by an insulating oxide layer that forms the dielectric, surrounded by liquid or solid electrolyte as a cathode. Because of its very thin and relatively high permittivity dielectric layer, the tantalum capacitor distinguishes itself from other conventional and electrolytic capacitors in having high capacitance per volume (high volumetric efficiency) and lower weight.

Tantalum is a conflict mineral. Tantalum electrolytic capacitors are considerably more expensive than comparable aluminum electrolytic capacitors.

Tantalum capacitors are inherently polarized components. Reverse voltage can destroy the capacitor. Non-polar or bipolar tantalum capacitors are made by effectively connecting two polarized capacitors in series, with the anodes oriented in opposite directions.

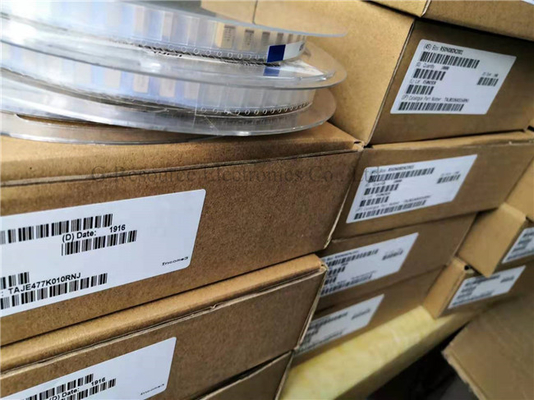

TAJE477K010RNJ MLCC Capacitor , Tantalum Capacitor 470uF(477) ±10% 10V CASE-E 470/10E 0













AVX Part No. Case Size Capacitance Rated Voltage (V) Rated Temperature (°C) Category Voltage (V) Category Temperature eo DCL (mA Max. DF % Max.

ESR

Max. (Q) @100kHz

 MSL 100kHz RMS Current (mA)
                      25°C 85°C 125°C
          2.5 Vb t @ 85°C
TAJA336*002#NJ A 33 2.5 85 1.7 125 0.8 8 1.7 1 210 189 84
TAJA476*002#NJ A 47 2.5 85 1.7 125 0.9 6 3 1 158 142 63
TAJA686*002#NJ A 68 2.5 85 1.7 125 1.4 8 1.5 [ 224 201 89
TAJA107*002# NJ A 100 2.5 85 1.7 125 2.5 30 1.4 1 231 208 93
TAJB107*002#NJ B 100 2.5 85 1.7 125 2.5 8 1.4 . 246 222 99
TAJ B157*002# NJ B 150 2.5 85 1.7 125 3 10 1.6 1 230 207 92
TAJB227*002#NJ B 220 2.5 85 1.7 125 4.4 16 1.6 1 230 207 92
TAJD227*002#NJ D 220 2.5 85 1.7 125 5.5 8 0.3 1 707 636 283
TAJD337*002#NJ D 330 2.5 85 1.7 125 8.2 8 0.3 1 707 636 283
TAJC477*002#NJ C 470 2.5 85 1.7 125 9.4 12 0.2 1 742 667 297
TAJD477*002#NJ D 470 2.5 85 1.7 125 11.6 8 0.2 1 866 779 346
TAJC687*002#NJ C 680 2.5 85 1.7 125 17 18 0.2 1 742 667 297
TAJD687*002#NJ D 680 2.5 85 1.7 125 17 16 0.2 1 866 779 346
TAJE687*002#NJ E 680 2.5 85 1.7 125 17 10 0.2 11) 908 817 363
TAJD108M002#NJ D 1000 2.5 85 1.7 125 25 20 0.2 1 866 779 346
TAJE108*002#NJ E 1000 2.5 85 1.7 125 20 14 0.4 11) 642 578 257
TAJD158*002#NJ D 1500 2.5 85 1.7 125 37.5 60 0.2 1 866 779 346
TAJE158*002#NJ E 1500 2.5 85 1.7 125 37 20 0.2 11) 908 817 363
TAJV158M002#NJ V 1500 2.5 85 1.7 125 30 20 0.2 11) 1118 1006 447
TAJV228M002#NJ V 2200 2.5 85 1.7 125 55 50 0.2 11) 1118 1006 447
4 Volt @ 85°C
TAJA336*004#NJ A 33 4 85 2.7 125 1.3 6 3 1 158 142 63
TAJA476*004#NJ A 47 4 85 2.7 125 1.9 8 2.6 1 170 153 68
TAJA686*004#NJ A 68 4 85 2.7 125 2.7 10 1.5 1 224 201 89
TAJB686*004#NJ B 68 4 85 2.7 125 2.7 6 1.8 1 217 196 87
TAJA107*004#NJ A 100 4 85 2.7 125 4 30 1.4 1 231 208 93
TAJ B107*004# NJ B 100 4 85 2.7 125 4 8 0.9 1 307 277 123
TAJB157*004#NJ B 150 4 85 2.7 125 6 10 1.5 1 238 214 95
TAJC157*004#NJ C 150 4 85 2.7 125 6 6 0.3 1 606 545 242
TAJB227*004#NJ B 220 4 85 2.7 125 8.8 12 1.1 1 278 250 111
TAJC227*004#NJ C 220 4 85 2.7 125 8.8 8 1.2 1 303 272 121
TAJD227*004#NJ D 220 4 85 2.7 125 8.8 8 0.9 1 408 367 163
TAJC337*004#NJ C 330 4 85 2.7 125 13.2 8 0.3 1 606 545 242
TAJD337*004#NJ D 330 4 85 2.7 125 13.2 8 0.9 1 408 367 163
TAJC477*004#NJ C 470 4 85 2.7 125 18.8 14 0.3 1 606 545 242
TAJD477*004#NJ D 470 4 85 2.7 125 18.8 12 0.9 1 408 367 163
TAJE477*004#NJ E 470 4 85 2.7 125 18.8 10 0.5 11) 574 517 230
TAJD687*004#NJ D 680 4 85 2.7 125 27.2 14 0.5 1 548 493 219
TAJE687*004#NJ E 680 4 85 2.7 125 27.2 14 0.9 11) 428 385 171
TAJD108*004#NJ D 1000 4 85 2.7 125 40 60 0.2 1 866 779 346
TAJE108*004#NJ E 1000 4 85 2.7 125 40 14 0.4 11) 642 578 257
TAJV108*004#NJ V 1000 4 85 2.7 125 40 16 0.2 11) 1118 1006 447
TAJE158*004#NJ E 1500 4 85 2.7 125 60 30 0.2 11) 908 817 363
TAJV158M004#NJ V 1500 4 85 2.7 125 60 30 0.2 11) 1118 1006 447
6.3 Vb t @ 85°C
TAJA106*006#NJ A 10 6.3 85 4 125 0.6 6 4 1 137 123 55
TAJA156*006# NJ A 15 6.3 85 4 125 0.9 6 3.5 1 146 132 59
TAJA226*006#NJ A 22 6.3 85 4 125 1.4 6 3 1 158 142 63
TAJA336*006#NJ A 33 6.3 85 4 125 2.1 8 2.2 1 185 166 74
TAJA476*006#NJ A 47 6.3 85 4 125 2.8 10 1.6 1 217 195 87
TAJB476*006#NJ B 47 6.3 85 4 125 3 6 2 1 206 186 82
TAJC476*006#NJ C 47 6.3 85 4 125 3 6 1.6 1 262 236 105
TAJB686*006#NJ B 68 6.3 85 4 125 4 8 0.9 1 307 277 123
TAJC686*006#NJ C 68 6.3 85 4 125 4.3 6 1.5 1 271 244 108
TAJ B107*006# NJ B 100 6.3 85 4 125 6.3 10 1.7 1 224 201 89
TAJC107*006#NJ C 100 6.3 85 4 125 6.3 6 0.9 1 350 315 140
TAJB157M006#NJ B 150 6.3 85 4 125 9.5 10 1.2 1 266 240 106
TAJC157*006#NJ C 150 6.3 85 4 125 9.5 6 1.3 1 291 262 116
TAJ D157*006# NJ D 150 6.3 85 4 125 9.5 6 0.9 1 408 367 163
TAJC227*006#NJ C 220 6.3 85 4 125 13.9 8 1.2 1 303 272 121
TAJD227*006#NJ D 220 6.3 85 4 125 13.9 8 0.4 1 612 551 245
TAJE227*006#NJ E 220 6.3 85 4 125 13.9 8 0.4 11) 642 578 257
TAJC337*006#NJ C 330 6.3 85 4 125 19.8 12 0.5 1 469 422 188
TAJD337*006#NJ D 330 6.3 85 4 125 20.8 8 0.4 1 612 551 245
TAJE337*006#NJ E 330 6.3 85 4 125 20.8 8 0.4 11) 642 578 257
TAJD477*006#NJ D 470 6.3 85 4 125 28 12 0.4 1 612 551 245
TAJE477*006#NJ E 470 6.3 85 4 125 28 10 0.4 11) 642 578 257
TAJV477*006#NJ V 470 6.3 85 4 125 28 10 0.4 11) 791 712 316
TAJE687*006#NJ E 680 6.3 85 4 125 42.8 10 0.5   574 517 230

TAJE108M006#NJ E 1000 6.3 85 4 125 60 20 0.2 11) 908 817 363
TAJV108M006#NJ V 1000 6.3 85 4 125 60 16 0.2 11) 1118 1006 447
10Volt@85°C
TAJA475*010#NJ A 4.7 10 85 7 125 0.5 6 5 [ 122 110 49
TAJA685*010#NJ A 6.8 10 85 7 125 0.7 6 4 1 137 123 55
TAJA106*01 O#NJ A 10 10 85 7 125 1 6 3 . 158 142 63
TAJA156*010# NJ A 15 10 85 7 125 1.5 6 3.2 1 153 138 61
TAJB156*01 O#NJ B 15 10 85 7 125 1.5 6 2.8 1 174 157 70
TAJA226*010#NJ A 22 10 85 7 125 2.2 8 3 1 158 142 63
TAJB226*010#NJ B 22 10 85 7 125 2.2 6 2.4 1 188 169 75
TAJA336*010#NJ A 33 10 85 7 125 3.3 8 1.7 1 210 189 84
TAJB336*010#NJ B 33 10 85 7 125 3.3 6 1.8 1 217 196 87
TAJC336*010#NJ C 33 10 85 7 125 3.3 6 1.6 1 262 236 105
TAJB476*010#NJ B 47 10 85 7 125 4.7 8 1 1 292 262 117
TAJC476*010#NJ C 47 10 85 7 125 4.7 6 1.2 1 303 272 121
TAJB686*010#NJ B 68 10 85 7 125 6.8 6 1.4 1 246 222 99
TAJC686*010#NJ C 68 10 85 7 125 6.8 6 1.3 1 291 262 116
TAJB107*01 O#NJ B 100 10 85 7 125 10 8 1.4 1 246 222 99
TAJC107*010#NJ C 100 10 85 7 125 10 8 1.2 1 303 272 121
TAJD107*01 O#NJ D 100 10 85 7 125 10 6 0.9 1 408 367 163
TAJC157*010#NJ C 150 10 85 7 125 15 8 0.9 1 350 315 140
TAJD157*01 O#NJ D 150 10 85 7 125 15 8 0.9 1 408 367 163
TAJE157*010#NJ E 150 10 85 7 125 15 8 0.9 11) 428 385 171
TAJC227*010#NJ C 220 10 85 7 125 22 16 0.5 1 469 422 188
TAJD227*010#NJ D 220 10 85 7 125 22 8 0.5 1 548 493 219
TAJE227*010#NJ E 220 10 85 7 125 22 8 0.5 11) 574 517 230
TAJD337*010#NJ D 330 10 85 7 125 33 8 0.9 1 408 367 163
TAJE337*010#NJ E 330 10 85 7 125 33 8 0.9   428 385 171
TAJV337*010#NJ V 330 10 85 7 125 33 10 0.9   572 474 211
TAJE477*010#NJ E 470 10 85 7 125 47 10 0.5 11) 574 517 230
TAJU477*010RNJ U 470 10 85 7 125 47 12 0.5 11) 574 517 230
TAJV477*010#NJ V 470 10 85 7 125 47 10 0.5 11) 707 636 283
16 Volt @85°C
TAJA225*016#NJ A 2.2 16 85 10 125 0.5 6 6.5 1 107 97 43
TAJA335*016#NJ A 3.3 16 85 10 125 0.5 6 5 1 122 110 49
TAJB335*016#NJ B 3.3 16 85 10 125 0.5 6 4.5 1 137 124 55
TAJA475*016#NJ A 4.7 16 85 10 125 0.8 6 4 1 137 123 55
TAJB475*016#NJ B 4.7 16 85 10 125 0.8 6 3.5 1 156 140 62
TAJA685*016#NJ A 6.8 16 85 10 125 1.1 6 3.5 1 146 132 59
TAJB685*016#NJ B 6.8 16 85 10 125 1.1 6 2.5 1 184 166 74
TAJA106*016# NJ A 10 16 85 10 125 1.6 6 3 1 158 142 63
TAJB106*016#NJ B 10 16 85 10 125 1.6 6 2.8 1 174 157 70
TAJC106*016#NJ C 10 16 85 10 125 1.6 6 2 1 235 211 94
TAJA156*016#NJ A 15 16 85 10 125 2.4 6 2 1 194 174 77
TAJB156*016#NJ B 15 16 85 10 125 2.4 6 2.5 1 184 166 74
TAJC156*016#NJ C 15 16 85 10 125 2.4 6 1.8 1 247 222 99
TAJB226*016#NJ B 22 16 85 10 125 3.5 6 2.3 1 192 173 77
TAJC226*016#NJ C 22 16 85 10 125 3.5 6 1 1 332 298 133
TAJD226*016#NJ D 22 16 85 10 125 3.5 6 1.1 1 369 332 148
TAJB336*016#NJ B 33 16 85 10 125 5.3 8 2.1 1 201 181 80
TAJC336*016#NJ C 33 16 85 10 125 5.3 6 1.5 1 271 244 108
TAJD336*016#NJ D 33 16 85 10 125 5.3 6 0.9 1 408 367 163
TAJC476*016#NJ C 47 16 85 10 125 7.5 6 0.5 1 469 422 188
TAJD476*016#NJ D 47 16 85 10 125 7.5 6 0.9 1 408 367 163
TAJC686*016#NJ C 68 16 85 10 125 10.9 6 1.3 1 291 262 116
TAJD686*016#NJ D 68 16 85 10 125 10.9 6 0.9 1 408 367 163
TAJC107*016#NJ C 100 16 85 10 125 16 8 1 1 332 298 133
TAJD107*016#NJ D 100 16 85 10 125 16 6 0.6 1 500 450 200
TAJE107*016#NJ E 100 16 85 10 125 16 6 0.9 11) 428 385 171
TAJD157*016#NJ D 150 16 85 10 125 24 6 0.9 1 408 367 163
TAJE157*016#NJ E 150 16 85 10 125 23 8 0.3 11) 742 667 297
TAJV157*016#NJ V 150 16 85 10 125 24 8 0.5 11) 707 636 283
TAJE227*016#NJ E 220 16 85 10 125 35.2 10 0.5   574 517 230
TAJV227*016#NJ V 220 16 85 10 125 35.2 8 0.9   527 474 211
TAJE337M016#NJ E 330 16 85 10 125 52.8 30 0.4 11) 642 578 257
20 Volt @ 85°C
TAJA105*020#NJ A 1 20 85 13 125 0.5 4 9 1 91 82 37
TAJA155*020# NJ A 1.5 20 85 13 125 0.5 6 6.5 1 107 97 43
TAJA225*020#NJ A 2.2 20 85 13 125 0.5 6 5.3 1 119 107 48
TAJB225*020#NJ B 2.2 20 85 13 125 0.5 6 3.5 1 156 140 62
TAJA335*020#NJ A 3.3 20 85 13 125 0.7 6 4.5 1 129 116 52

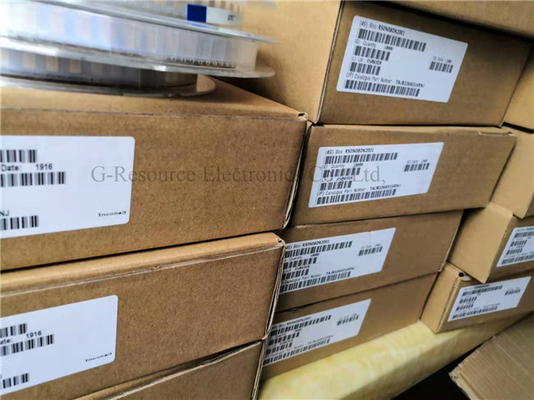

TAJE477K010RNJ MLCC Capacitor , Tantalum Capacitor 470uF(477) ±10% 10V CASE-E 470/10E 1
