Powerful Zener Rectifier / Silicon Semiconductor BZX384-C3V3 SOD-323
| Place of Origin | Malaysia / CHINA |
|---|---|
| Brand Name | NXP/LRC/FSC/ON/MCC/DIODE/VISHAY/Thinkchip |
| Model Number | BZX384-C3V3 |
| Minimum Order Quantity | 100PCS |
| Price | negotiable |
| Packaging Details | Tape & Reel (TR) / Cut Tape (CT) |
| Delivery Time | 1-2 working days |
| Payment Terms | T/T, Western Union,paypal,MoneyGram |
| Supply Ability | 9,900,000 pcs |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Part Status | Active | Voltage - Zener (Nom) (Vz) | 3.3V |
|---|---|---|---|
| Tolerance | ±5% | Power - Max | 300mW |
| Impedance (Max) (Zzt) | 100 Ohms | Operating Temperature | -65°C ~ 150°C |
| High Light | smd zener diode,silicon semiconductor |
||
Product Description
Powerful Zener Rectifier / Silicon Semiconductor BZX384-C3V3 SOD-323

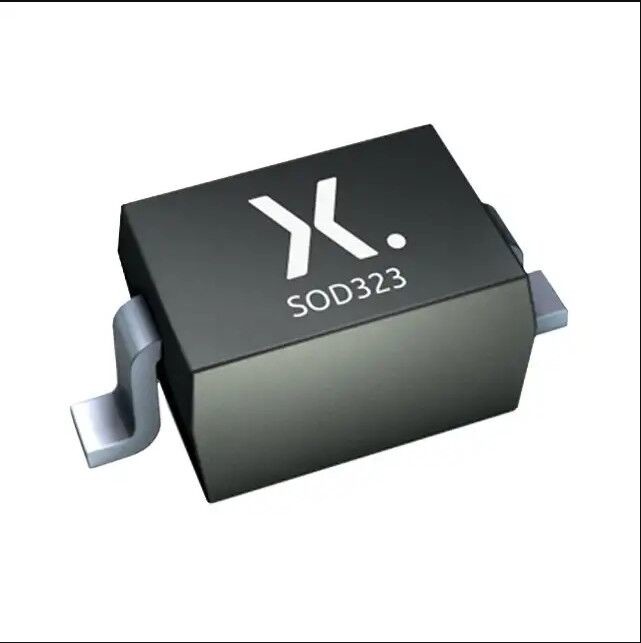

Zener Diode 3.3V 300mW ±5% Surface Mount SOD-323
Zener Diode Basic Operation and Applications
Zener Diode is a silicon semiconductor device that permits current to flow in either a forward or reverse direction. The diode consists of a special, heavily doped p-n junction, designed to conduct in the reverse direction when a certain specified voltage is reached.
The Zener diode has a well-defined reverse-breakdown voltage, at which it starts conducting current, and continues operating continuously in the reverse-bias mode without getting damaged. Additionally, the voltage drop across the diode remains constant over a wide range of voltages, a feature that makes Zener diodes suitable for use in voltage regulation.
Zener diode operation
The Zener diode operates just like the normal diode when in the forward-bias mode, and has a turn-on voltage of between 0.3 and 0.7 V. However, when connected in the reverse mode, which is usual in most of its applications, a small leakage current may flow. As the reverse voltage increases to the predetermined breakdown voltage (Vz), a current starts flowing through the diode. The current increases to a maximum, which is determined by the series resistor, after which it stabilizes and remains constant over a wide range of applied voltage.
BZX384-C2V7/ BZX84C2V7W
Planar Die Construction.
200mW Power Dissipation
Zener Voltages From 2.4V - 43V
5% Standard Vz Tolerance
Designed for Surface Mount Application
Plastic Material – UL Recognition Flammability
Classification 94V-O
MECHANICAL DATA
Case: SOT-323, Molded Plastic
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208
Polarity: See Diagram
Weight: 0.006 grams (approx.)
| Base Part Number | BZX384C2V7 / BZX84C2V7W |
| Part Status | Active |
| Voltage - Zener (Nom) (Vz) | 3.3V |
| Tolerance | ±5% |
| Power - Max | 300mW |
| Impedance (Max) (Zzt) | 100 Ohms |
| Current - Reverse Leakage @ Vr | 20µA @ 1V |
| Voltage - Forward (Vf) (Max) @ If | 1.1V @ 100mA |
| Operating Temperature | -65°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
Service
Contact us if you need more detail or quotation of these item. info@gr-ele.com
Pls kindly check the below part number of same series.
BZX484-C2V4 - BZV384-C39
BZX84C2V4W-BZX84C39W ZENER DIODE
