SMA Super Fast Recovery Diode ES1A ES1B ES1C ES1D ES1E ES1G ES1J Long Lifespan
| Place of Origin | CHINA |
|---|---|
| Brand Name | THINKCHIP |
| Model Number | ES1A ES1B ES1C ES1D ES1E ES1G ES1J |
| Minimum Order Quantity | 100PCS |
| Price | negotiable |
| Packaging Details | Tape & Reel (TR) / Cut Tape (CT) |
| Delivery Time | 1-2 WORK DAYS |
| Payment Terms | T/T, Western Union,paypal, MoneyGram |
| Supply Ability | 9,900,000 pcs/weekly |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Package | SMA | IR(uA) | 5 |
|---|---|---|---|
| VF(V) | 0.95 | VRRM(V) | 50 |
| IFSM(A) | 30 | Trr(ns) | 35 |
| IO(A) | 1 | TYPE | ES1A |
| High Light | fast recovery rectifier diode,surface mount diode |
||
Product Description

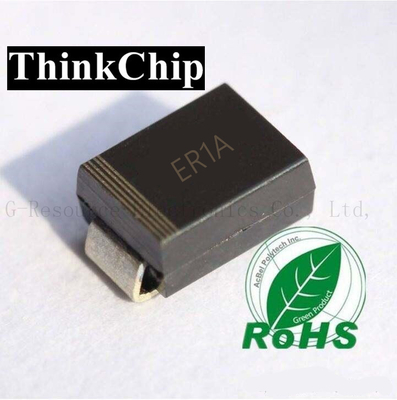

ES1A ES1B ES1C ES1D ES1E ES1G ES1JFast Recorvery Diode Fast Switching Diode DO-214AC SMA
| Type | Package | VRRM(V) | IO(A) | IFSM(A) | Trr(ns) | VF(V) | IR(uA) |
| ES1A | SMA | 50 | 1 | 30 | 35 | 0.95 | 5 |
| ES1B | SMA | 100 | 1 | 30 | 35 | 0.95 | 5 |
| ES1C | SMA | 150 | 1 | 30 | 35 | 0.95 | 5 |
| ES1D | SMA | 200 | 1 | 30 | 35 | 0.95 | 5 |
| ES1E | SMA | 300 | 1 | 30 | 35 | 1.25 | 5 |
| ES1G | SMA | 400 | 1 | 30 | 35 | 1.25 | 5 |
| ES1J | SMA | 600 | 1 | 30 | 35 | 1.7 | 5 |
other items
| ES1A | SMA | 50 | 1 | 30 | 35 | 0.95 | 5 |
| ES1ABF | SMBF | 100 | 3 | 35 | 35 | 1 | 5 |
| ES1AF | SMAF | 50 | 1 | 30 | 35 | 1 | 5 |
| ES1AL | SOD-123FL | 50 | 1 | 30 | 35 | 1 | 5 |
| ES1B | SMA | 100 | 1 | 30 | 35 | 0.95 | 5 |
| ES1BBF | SMBF | 50 | 3 | 35 | 35 | 1 | 5 |
| ES1BF | SMAF | 100 | 1 | 30 | 35 | 1 | 5 |
| ES1BL | SOD-123FL | 100 | 1 | 30 | 35 | 1 | 5 |
| ES1C | SMA | 150 | 1 | 30 | 35 | 0.95 | 5 |
| ES1CBF | SMBF | 150 | 3 | 35 | 35 | 1 | 5 |
| ES1CF | SMAF | 150 | 1 | 30 | 35 | 1 | 5 |
| ES1CL | SOD-123FL | 150 | 1 | 30 | 35 | 1 | 5 |
| ES1D | SMA | 200 | 1 | 30 | 35 | 0.95 | 5 |
| ES1DBF | SMBF | 200 | 3 | 35 | 35 | 1 | 5 |
| ES1DF | SMAF | 200 | 1 | 30 | 35 | 1 | 5 |
| ES1DL | SOD-123FL | 200 | 1 | 30 | 35 | 1 | 5 |
| ES1E | SMA | 300 | 1 | 30 | 35 | 1.25 | 5 |
| ES1EBF | SMBF | 300 | 3 | 35 | 35 | 1.25 | 5 |
| ES1EF | SMAF | 300 | 1 | 30 | 35 | 1.25 | 5 |
| ES1EL | SOD-123FL | 300 | 1 | 30 | 35 | 1.25 | 5 |
| ES1G | SMA | 400 | 1 | 30 | 35 | 1.25 | 5 |
| ES1GBF | SMBF | 400 | 3 | 35 | 35 | 1.25 | 5 |
| ES1GF | SMAF | 400 | 1 | 30 | 35 | 1.25 | 5 |
| ES1GL | SOD-123FL | 400 | 1 | 30 | 35 | 1.25 | 5 |
| ES1J | SMA | 600 | 1 | 30 | 35 | 1.7 | 5 |
| ES1JBF | SMBF | 600 | 3 | 35 | 35 | 1.68 | 5 |
| ES1JF | SMAF | 600 | 1 | 30 | 35 | 1.65 | 5 |
| ES1JL | SOD-123FL | 600 | 1 | 30 | 35 | 1.68 | 5 |
Fast recovery diode (FRD) is a kind of semiconductor diode with good switching characteristics and short reverse recovery time, which is mainly used in switching power supply, PWM pulse width modulator, inverter and other electronic circuits, as a high frequency rectifier diode, secondary diode or damping diode. The internal structure of fast recovery diode is different from ordinary p-junction diode. It belongs to PIN junction diode, that is, base region I is added between p-type silicon material and n-type silicon material to form PIN silicon chip. Because the base area is very thin and the reverse recovery charge is very small, the reverse recovery time of the fast recovery diode is short, the forward voltage drop is low, and the reverse breakdown voltage (withstand voltage value) is high.
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 °C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or
inductive load. For capacitive load, derate current by 20%.
