SMB Fast Recovery Diode FR2A FR2B FR2D FR2G FR2J FR2K FR2M DO214-AA Surface Mount Device

  • SMB Fast Recovery Diode FR2A FR2B FR2D FR2G FR2J FR2K FR2M DO214-AA Surface Mount Device
  • SMB Fast Recovery Diode FR2A FR2B FR2D FR2G FR2J FR2K FR2M DO214-AA Surface Mount Device
  • SMB Fast Recovery Diode FR2A FR2B FR2D FR2G FR2J FR2K FR2M DO214-AA Surface Mount Device
Place of Origin CHINA
Brand Name THINKCHIP
Model Number FR2A FR2B FR2D FR2G FR2J FR2K FR2M
Minimum Order Quantity 100PCS
Price negotiable
Packaging Details Tape & Reel (TR) / Cut Tape (CT)
Delivery Time 1-2 WORK DAYS
Payment Terms T/T, Western Union,paypal, MoneyGram
Supply Ability 9,900,000 pcs/weekly

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
TYPE FR2A FR2B FR2D FR2G FR2J FR2K FR2M Package SMB
VRRM(V) 50V IO(A) 2A
IFSM(A) 50A Trr(ns) 150
VF(V) 1.3 IR(uA) 5
High Light

high power rectifier diode

,

surface mount diode
Leave a Message
Product Description

FR2A FR2B FR2D FR2G FR2J FR2K FR2M Fast Recorvery Diode DO214-AA SMB

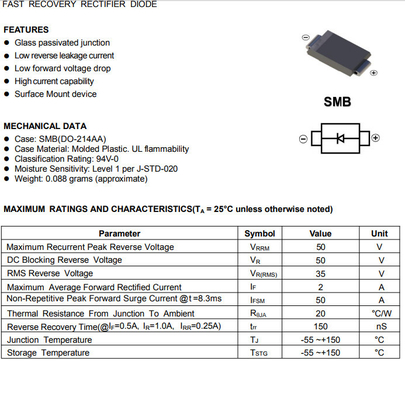

FAST RECOVERY RECTIFIER DIODE
RS2A(FR2A)
FEATURES
l Glass passivated junction
l Low reverse leakage current
l Low forward voltage drop
l Highcurrent capability
l Surface Mount device
MECHANICAL DATA
l Case: SMB(DO-214AA)
l Case Material: Molded Plastic. UL flammability
l Classification Rating: 94V-0
l Moisture Sensitivity: Level 1 per J-STD-020
l Weight: 0.088 grams (approximate)



other items

FR2A SMB 50 2 50 150 1.3 5
FR2B SMB 100 2 50 150 1.3 5
FR2D SMB 200 2 50 150 1.3 5
FR2G SMB 400 2 50 150 1.3 5
FR2J SMB 600 2 50 250 1.3 5
FR2K SMB 800 2 50 500 1.3 5
FR2M SMB 1000 2 50 500 1.3 5



SMB Fast Recovery Diode FR2A FR2B FR2D FR2G FR2J FR2K FR2M DO214-AA Surface Mount Device 0

SMB Fast Recovery Diode FR2A FR2B FR2D FR2G FR2J FR2K FR2M DO214-AA Surface Mount Device 1 SMB Fast Recovery Diode FR2A FR2B FR2D FR2G FR2J FR2K FR2M DO214-AA Surface Mount Device 2

SMB Fast Recovery Diode FR2A FR2B FR2D FR2G FR2J FR2K FR2M DO214-AA Surface Mount Device 3

SMB Fast Recovery Diode FR2A FR2B FR2D FR2G FR2J FR2K FR2M DO214-AA Surface Mount Device 4
