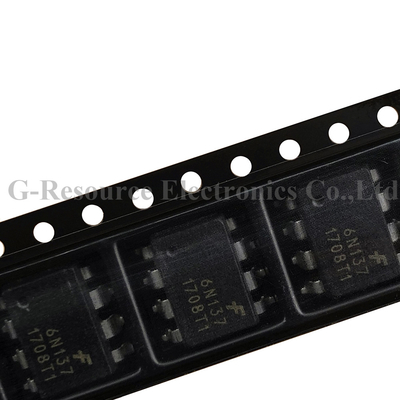

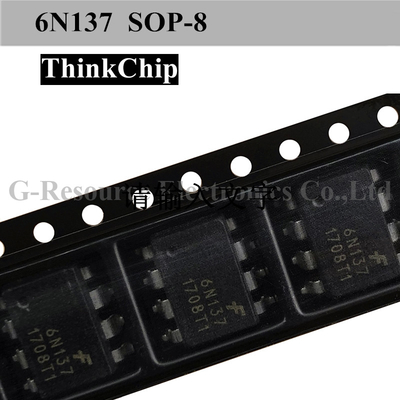

Ic SOP8 6N137 DIP8 6N137M 14V Dc Voltage Regulator

  • Ic SOP8 6N137 DIP8 6N137M 14V Dc Voltage Regulator
  • Ic SOP8 6N137 DIP8 6N137M 14V Dc Voltage Regulator
Place of Origin Malaysia / CHINA
Brand Name ON/Thinkchip / Fairchild
Model Number 6N137
Minimum Order Quantity 10 PCS
Price negotiable
Packaging Details Tape & Reel (TR) / Cut Tape (CT)
Delivery Time 1-2 working days
Payment Terms T/T, Western Union,paypal
Supply Ability 9,900,000 pcs

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Sop-8 Dip-8 Vf - Forward Voltage 14V
Packaging REEL If - Forward Current 10mA
Highlight

10mb/s high speed optocouplers

,

2500 vrms power voltage regulator
Leave a Message
Product Description

6N137 Dc Voltage Regulator Ic SOP8 6N137 DIP8 6N137M High Speed Optocouplers





Description
The 6N137M, HCPL2601M, HCPL2611M single-channel
and HCPL2630M, HCPL2631M dual-channel optocouplers consist of a 850 nm AlGaAS LED, optically coupled
to a very high speed integrated photo-detector logic gate
with a strobable output. This output features an open collector, thereby permitting wired OR outputs. The
switching parameters are guaranteed over the temperature range of -40°C to +85°C. A maximum input signal of
5 mA will provide a minimum output sink current of
13 mA (fan out of 8).
An internal noise shield provides superior common mode
rejection of typically 10 kV/µs. The HCPL2601M and
HCPL2631M has a minimum CMR of 5 kV/µs. The
HCPL2611M has a minimum CMR of 10 kV/µs

Product Attribute



 Attribute Value
Manufacturer: ON Semiconductor
Product Category: High Speed Optocouplers
RoHS: Details
Package / Case: SMT-8
Data Rate: 10 Mb/s
Number of Channels: 1 Channel
Output Type: Open Collector
Isolation Voltage: 2500 Vrms
Vf - Forward Voltage: 1.4 V
If - Forward Current: 10 mA
Vr - Reverse Voltage: 5 V
Pd - Power Dissipation: 100 mW
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Series: 6N137M
Packaging: Cut Tape

Packaging: Reel
Output Current: 50 mA
Brand: ON Semiconductor / Fairchild
Fall Time: 75 ns
Maximum Collector Current: 50 mA
Operating Supply Voltage: 4.5 V to 5.5 V
Product Type: High Speed Optocouplers
Rise Time: 75 ns
Factory Pack Quantity: 1000
Subcategory: Optocouplers
Unit Weight: 0.025397 oz

Ic SOP8 6N137 DIP8 6N137M 14V Dc Voltage Regulator 0



Ic SOP8 6N137 DIP8 6N137M 14V Dc Voltage Regulator 1



Ic SOP8 6N137 DIP8 6N137M 14V Dc Voltage Regulator 2

Ic SOP8 6N137 DIP8 6N137M 14V Dc Voltage Regulator 3
