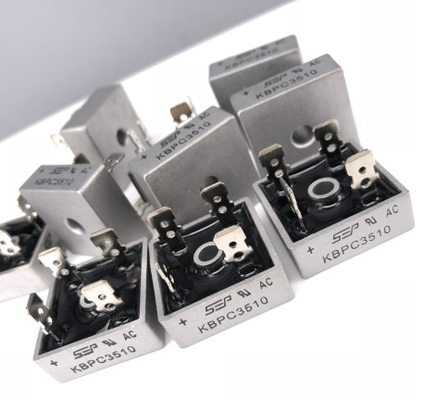

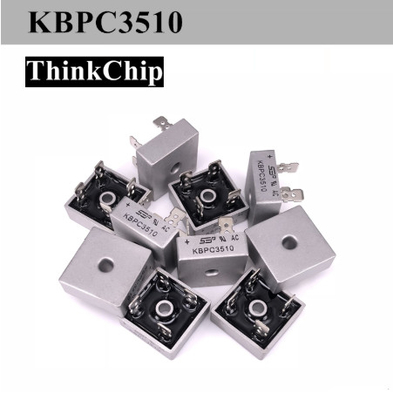

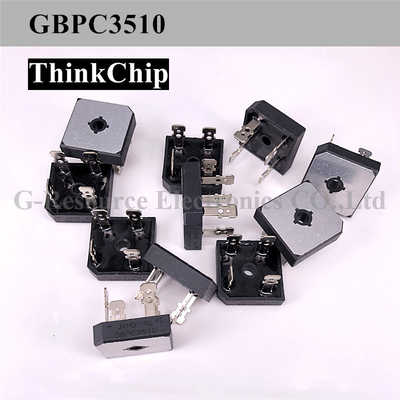

35A 1000 Volt General Purpose Rectifier Diode , High Voltage Rectifier Diode GBPC3510 GBPC3510W

  • 35A 1000 Volt General Purpose Rectifier Diode , High Voltage Rectifier Diode GBPC3510 GBPC3510W
  • 35A 1000 Volt General Purpose Rectifier Diode , High Voltage Rectifier Diode GBPC3510 GBPC3510W
  • 35A 1000 Volt General Purpose Rectifier Diode , High Voltage Rectifier Diode GBPC3510 GBPC3510W
Place of Origin CHINA
Brand Name SEP
Model Number GBPC3510 GBPC3510W
Minimum Order Quantity 10 PCS
Price negotiable
Packaging Details Tape & Reel (TR) / Cut Tape (CT)
Delivery Time 1-2 working days
Payment Terms T/T, Western Union,paypal,MoneyGram
Supply Ability 9,900,000 pcs

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Temperature -55°C ~ 150°C (TJ) Package / Case 4-Square, KBPC
Current - Average Rectified (Io) 35A Voltage - Forward (Vf) (Max) @ If 1.1V @ 17.5A
Voltage - Peak Reverse (Max) 1KV Current - Reverse Leakage @ Vr 10µA @ 1000V
Highlight

general purpose schottky diode

,

high power rectifier diode
Leave a Message
Product Description



35A 1000 Volt General Purpose Rectifier Diode / High Voltage Rectifier Diode GBPC3510 GBPC3510W





Contact us if you need more detail or quotation of these item. info@gr-ele.com


Pls kindly check the below part number of same series.



  Family Status trr (ns) Package AEC-Q VRRM (V) IF(AV) (A) IR (µA) VF (V) TJ Max. (°C IFSM(A)
GBPC15005 Standard Active - GBPC   50 15 5 1.1 150 300
GBPC1501 Standard Active - GBPC   100 15 5 1.1 150 300
GBPC1502 Standard Active - GBPC   200 15 5 1.1 150 300
GBPC1504 Standard Active - GBPC   400 15 5 1.1 150 300
GBPC1506 Standard Active - GBPC   600 15 5 1.1 150 300
GBPC1508 Standard Active - GBPC   800 15 5 1.1 150 300
GBPC1510 Standard Active - GBPC   1000 15 5 1.1 150 300
GBPC25005 Standard Active - GBPC   50 25 5 1.1 150 300
GBPC2501 Standard Active - GBPC   100 25 5 1.1 150 300
GBPC2502 Standard Active - GBPC   200 25 5 1.1 150 300
GBPC2504 Standard Active - GBPC   400 25 5 1.1 150 300
GBPC2506 Standard Active - GBPC   600 25 5 1.1 150 300
GBPC2508 Standard Active - GBPC   800 25 5 1.1 150 300
GBPC2510 Standard Active - GBPC   1000 25 5 1.1 150 300
GBPC35005 Standard Active - GBPC   50 35 5 1.1 150 400
GBPC3501 Standard Active - GBPC   100 35 5 1.1 150 400
GBPC3502 Standard Active - GBPC   200 35 5 1.1 150 400
GBPC3504 Standard Active - GBPC   400 35 5 1.1 150 400
GBPC3506 Standard Active - GBPC   600 35 5 1.1 150 400
GBPC3508 Standard Active - GBPC   800 35 5 1.1 150 400



35A 1000 Volt General Purpose Rectifier Diode , High Voltage Rectifier Diode GBPC3510 GBPC3510W 035A 1000 Volt General Purpose Rectifier Diode , High Voltage Rectifier Diode GBPC3510 GBPC3510W 135A 1000 Volt General Purpose Rectifier Diode , High Voltage Rectifier Diode GBPC3510 GBPC3510W 235A 1000 Volt General Purpose Rectifier Diode , High Voltage Rectifier Diode GBPC3510 GBPC3510W 335A 1000 Volt General Purpose Rectifier Diode , High Voltage Rectifier Diode GBPC3510 GBPC3510W 4






35A 1000 Volt General Purpose Rectifier Diode , High Voltage Rectifier Diode GBPC3510 GBPC3510W 5
35A 1000 Volt General Purpose Rectifier Diode , High Voltage Rectifier Diode GBPC3510 GBPC3510W 6
35A 1000 Volt General Purpose Rectifier Diode , High Voltage Rectifier Diode GBPC3510 GBPC3510W 7
