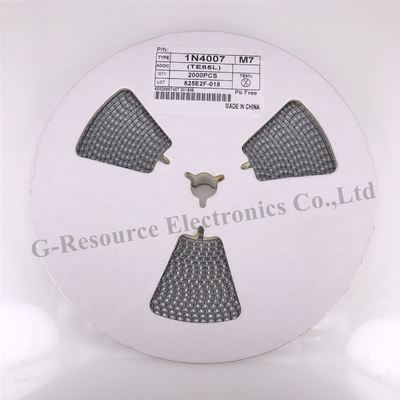

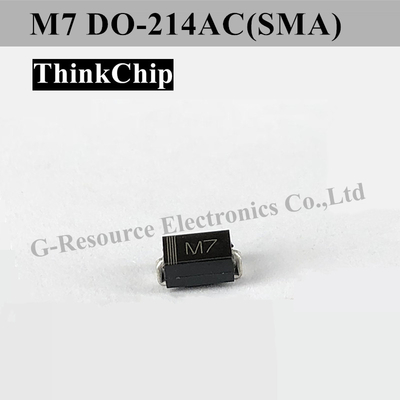

M1 M2 M3 M4 M6 M7 1N4007 General Purpose Rectifier DO-214AC 50-1000V 1A
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | M7 | Package | SMA |
|---|---|---|---|
| VRRM(V) | 1000V | IO(A) | 1 |
| Highlight | high power rectifier diode,surface mount rectifier diode |
||
Product Description
M1 M2 M3 M4 M5 M6 M7 1N4007 50-1000V 1A SGeneral Purpose Rectifier Diode DO-214AC
Contact us if you need more detail or quotation of these item. info@gr-ele.com
G-Resource Electronics Co., Ltd,. We stay here and waiting you to be our partner!
Pls kindly check the below part number of same series.
| Type | Package | VRRM(V) | IO(A) | IF(A) | IFSM(A) | VF(V) | IR(uA) | PD(mW) |
| M1 | SMA | 50 | 1 | 1 | 30 | 1.1 | 5 | 1100 |
| M2 | SMA | 100 | 1 | 1 | 30 | 1.1 | 5 | 1100 |
| M3 | SMA | 200 | 1 | 1 | 30 | 1.1 | 5 | 1100 |
| M4 | SMA | 400 | 1 | 1 | 30 | 1.1 | 5 | 1100 |
| M5 | SMA | 600 | 1 | 1 | 30 | 1.1 | 5 | 1100 |
| M6 | SMA | 800 | 1 | 1 | 30 | 1.1 | 5 | 1100 |
| M7 | SMA | 1000 | 1 | 1 | 30 | 1.1 | 5 | 1100 |
| Manufacturer | TOSHIBA / MIC/ MCC/Thinkchip |
| Series | Automotive, AEC-Q101 |

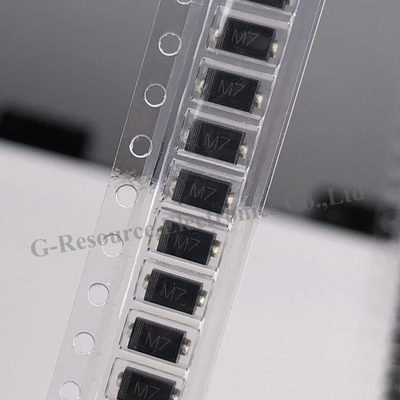

| Packaging | Cut Tape (CT) |
| Part Status | Active |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1000V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.1V @ 1A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 2.5µs |
| Current - Reverse Leakage @ Vr | 5µA @ 1000V |
| Capacitance @ Vr, F | 2.5pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Lead Free Status / RoHS Status | Lead free / ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
