79L09 79L12 79L15 Voltage Regulator IC Three Terminal SOT89 High Efficient
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details

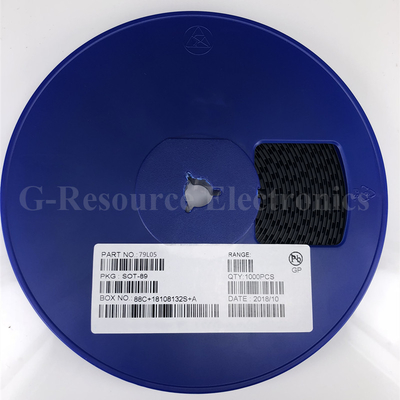

| TYPE | 79L05 | Package | SOT89 |
|---|---|---|---|
| REEL | 1000/REEL | PD(mW) | 500 |
| VO(V) | -4.8~-5.2 | IO(mA) | 100 |
| Highlight | three terminal voltage regulator,ldo voltage regulator |
||
Product Description

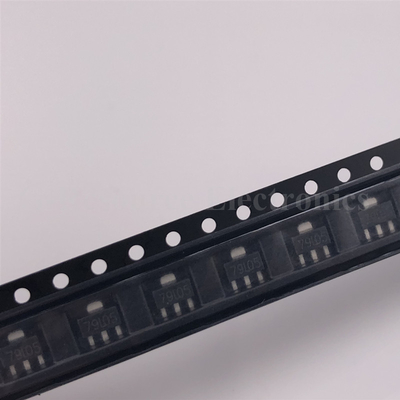

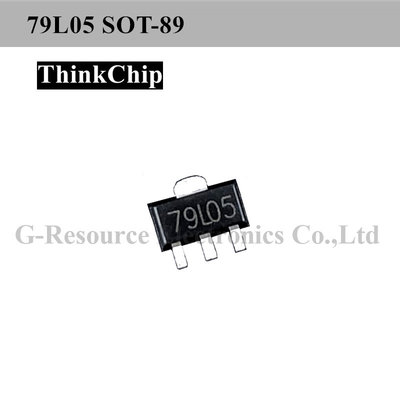

79L05 79L06 79L08 79L09 79L12 79L15 voltage regulat Three-terminal regulator patch IC SOT89
Contact us if you need more detail or quotation of these item. info@gr-ele.com
G-Resource Electronics Co., Ltd, as the preferred supplier of the world well-known enterprises, take strict quality control as the key to our success. G-Resource Electronics Co., Ltd has all along been committed to the "Zero Defect" quality management system and we have established a comprehensive quality management system, from supply chain management to single transaction monitoring, from suppliers grading system to quality inspection procedures. At the same time, we also has the excellent services of electronics field : Spot Buy Service; PPV Projects;BOM Kitting;Excess Liquidation;Value-Add Service;All-in-One Package Service. And also, we ensure the fast delivery of all our customers,we not only has closed cooperation relationship with international express :UPS,DHL,FEDEX,TNT ect but also has the great support of District logistics dedicated line.We confident that you will be satisfy with us once you start to cooperate with us. We stay here and waiting you to be our partner!
Three-terminal voltage regulators, there are two main, one output voltage is fixed, called fixed output three-terminal voltage regulators, the other output voltage is adjustable, called adjustable output three-terminal voltage regulators, its basic principle is the same, all use series voltage regulator circuit. In the linear integrated voltage regulator, the three-terminal voltage regulator is widely used because it has only three leads, few external components, easy to use, stable performance, low price and other advantages.
The general products of three-terminal voltage regulators are 78 series (positive power supply) and 79 series (negative power supply). The output voltage is represented by the last two Numbers in the specific model, including 5V, 6V, 8V, 9V, 12V, 15V, 18V and 24V.Output current 78 (or 79) followed by a letter to distinguish L for 0.1;AM means 0.5a, no letter means 1.5a, such as 78L05 means 5V 0.1a
| Type | Package | VO(V) | IO(mA) | VIROC(V) | PD(mW) |
| 78L05 | SOT-89 | 4.8~5.2 | 100 | - | 500 |
| 78L06 | SOT-89 | 5.75~6.25 | 100 | - | 500 |
| 78L08 | SOT-89 | 7.7~8.3 | 100 | - | 500 |
| 78L09 | SOT-89 | 8.64~9.36 | 100 | - | 500 |
| 78L12 | SOT-89 | 11.5~12.5 | 100 | - | 500 |
| 78L15 | SOT-89 | 14.4~15.6 | 100 | - | 500 |
| 78L18 | SOT-89 | 17.3~18.7 | 100 | - | 500 |
| 79L05 | SOT-89 | -4.8~-5.2 | 100 | - | 500 |
| 79L06 | SOT-89 | -5.75~-6.2 | 100 | - | 500 |
| 79L08 | SOT-89 | -7.7~-8.3 | 100 | - | 500 |
| 79L09 | SOT-89 | -8.64~-9.3 | 100 | - | 500 |
| 79L12 | SOT-89 | -11.5~-12 | 100 | - | 500 |
| 79L15 | SOT-89 | -14.4~-15. | 100 | - | 500 |
