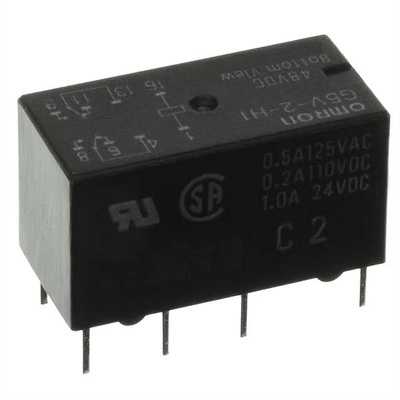

G5V-2-H1 48VDC General Purpose Relay DPDT 2 Form C Through Hole 1A 48VDC
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Categories | Relay | Manufacturer | Omron Electronics Inc-EMC Div |
|---|---|---|---|
| Coil Voltage | 48VDC | Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 1A | Switching Voltage | 125VAC, 125VDC - Max |
| Highlight | electrical control relay,high power relay |
||
Product Description
G5V-2-H1 48VDC General Purpose Relay DPDT (2 Form C) Through Hole 1A 48VDC
Description
What are relays? A relay is an electromagnetic switch operated by a relatively small electric current that can turn on or off a much larger electric current. The heart of a relay is an electromagnet (a coil of wire that becomes a temporary magnet when electricity flows through it).
A wide range of products are available for the purpose of sequence control to direct load switching, which will suit for various applications depending on the control method or environment inside of a panel.
Multi-pole Relays provide high capacity and high dielectric strength. The G7L and G7J can be used selectively according to the characteristics of a compressor, a heater, or a motor.
Specification
| Categories | Relays |
| Signal Relays, Up to 2 Amps | |
| Manufacturer | Omron Electronics Inc-EMC Div |
| Series | G5V-2 |
| Packaging ? | Tube ? |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 48VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 1A |
| Switching Voltage | 125VAC, 125VDC - Max |
| Coil Current | 6.3mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 36 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 7ms |
| Release Time | 3ms |
| Operating Temperature | -25°C ~ 70°C |
| Contact Material | Silver (Ag), Gold (Au) |
| Relay Type | General Purpose |
| Coil Resistance | 7.68 kOhms |
